Description

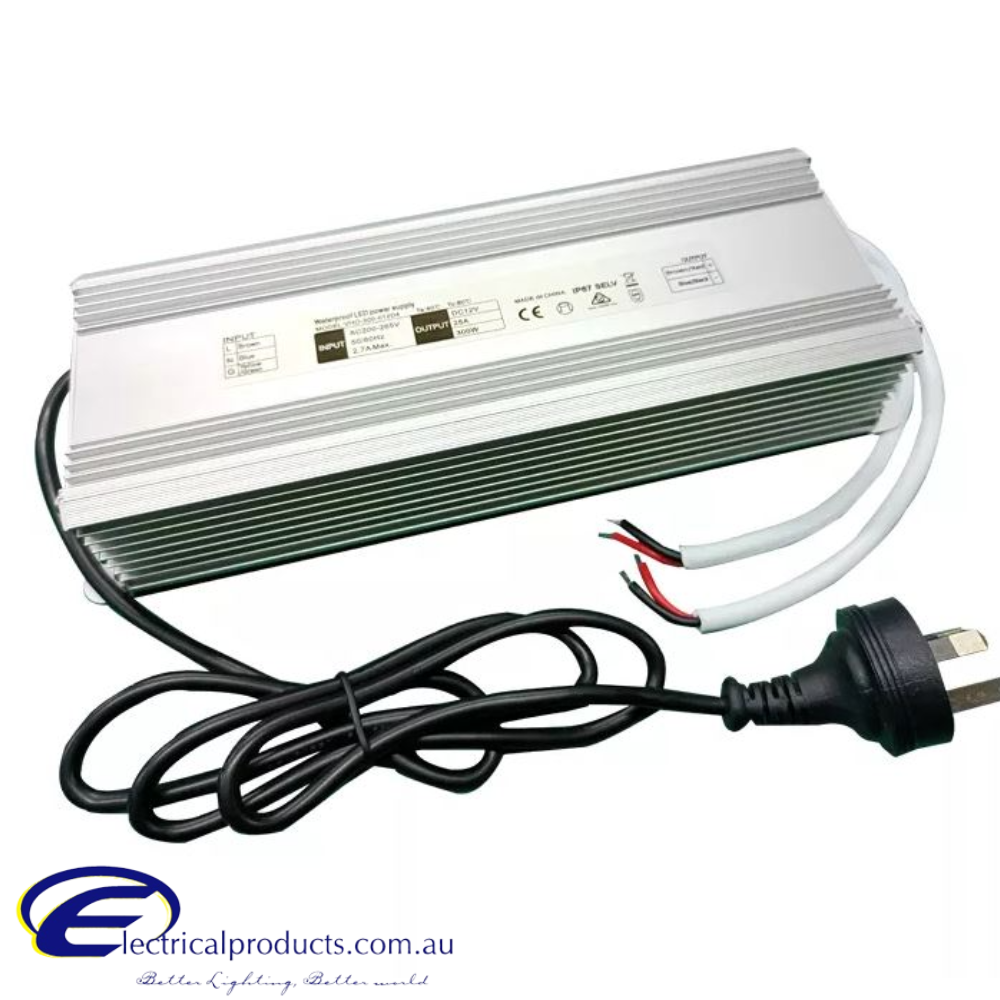

Weatherproof DC Constant Voltage 12V 300W IP67 Driver - VHO-300-012D4
Features
* Constant voltage output
* 100% full load burn-in test
* Dry, damp and wet location
* Over voltage/over load/short circuit/over-temp protection
* IP67 waterproof design
![]({{media%20url="banners/approval.jpg"}})
Technical Parameters
| AC input range | 185-265Vac/50-60Hz | Operating temperature | -30℃ - +60℃，Tc：80℃ |
| Input surge current | <25A/110Vac ; <15A/230Vac | Storage temperature | -40℃ - +80℃ |
| Power Factor | 0.5-0.7 | Certification | EN61347-1;EN61347-2-13;SELV |
| Withstand voltage | 2000V/3750V | Dimensions | L275*W95*H50(mm) |
| Protection | OCP,OVP.SCP-Auto Recovery | Weight | 1830g |
Product List
| NO. | Output power | Model | Input voltage | Output voltage | Output current | Ripple and noise | Efficiency | Wiring Request |
| 1 | 300W | VHO-300-012D4 | AC185-265V | DC12±0.5V | 25A max | 700mV max | 83% |
VDE H03VV-F 0.75mm² Input：200mm Output：200mm |
![]({{media%20url="wysiwyg/300w_dimensions.jpg"}})
