Description

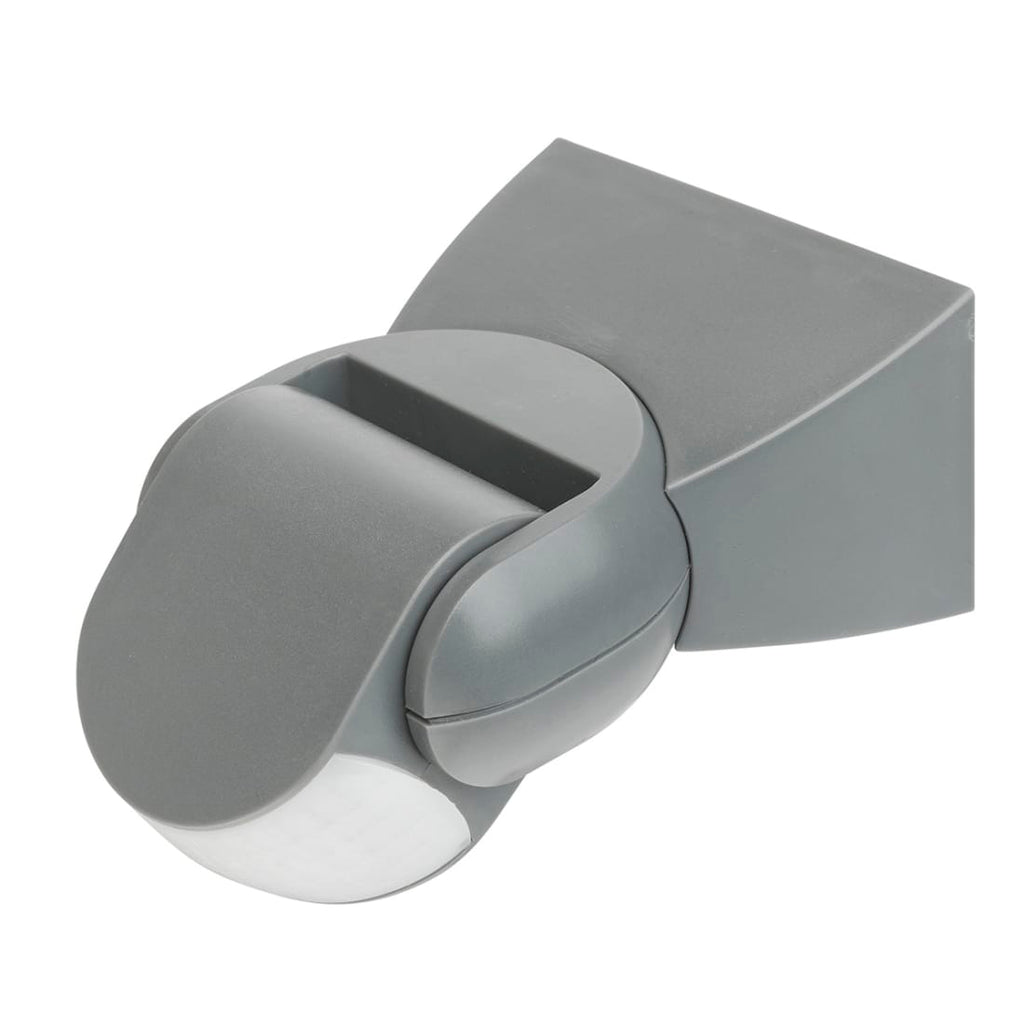

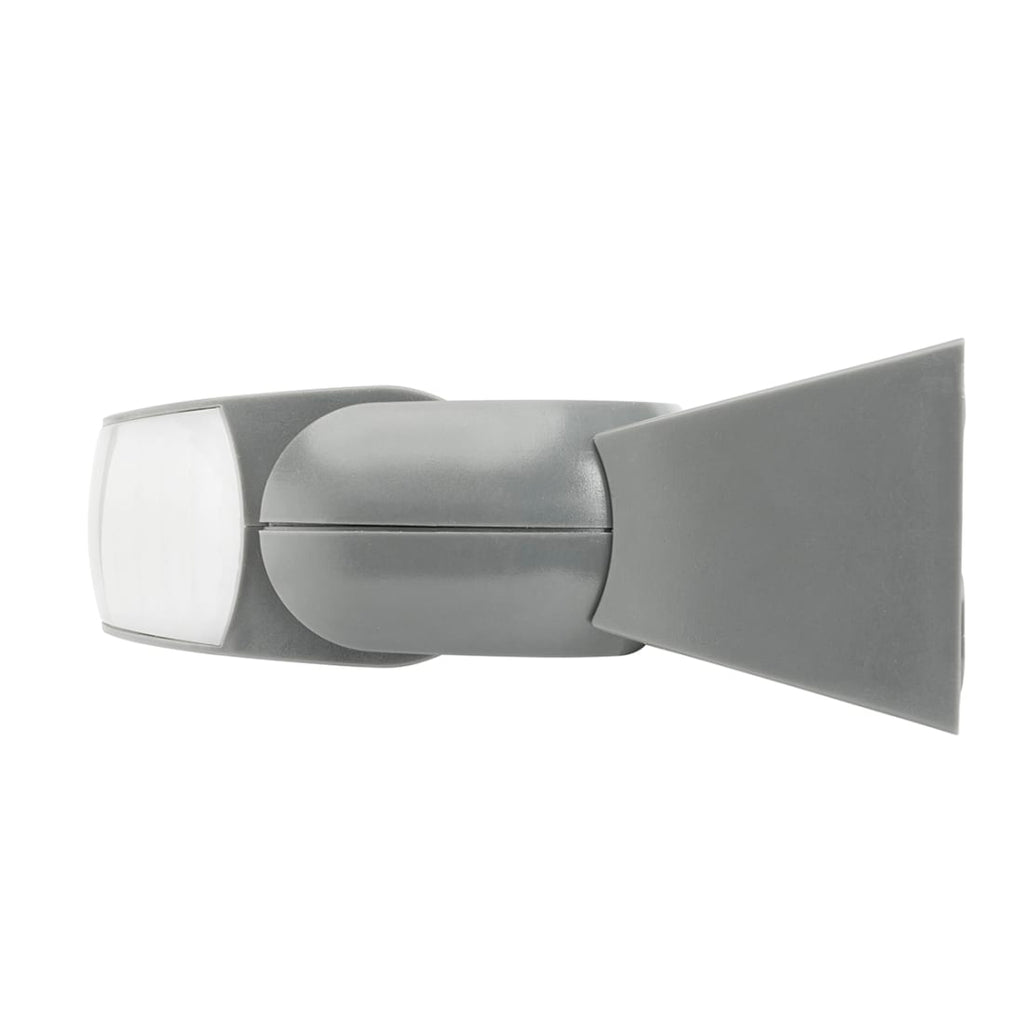

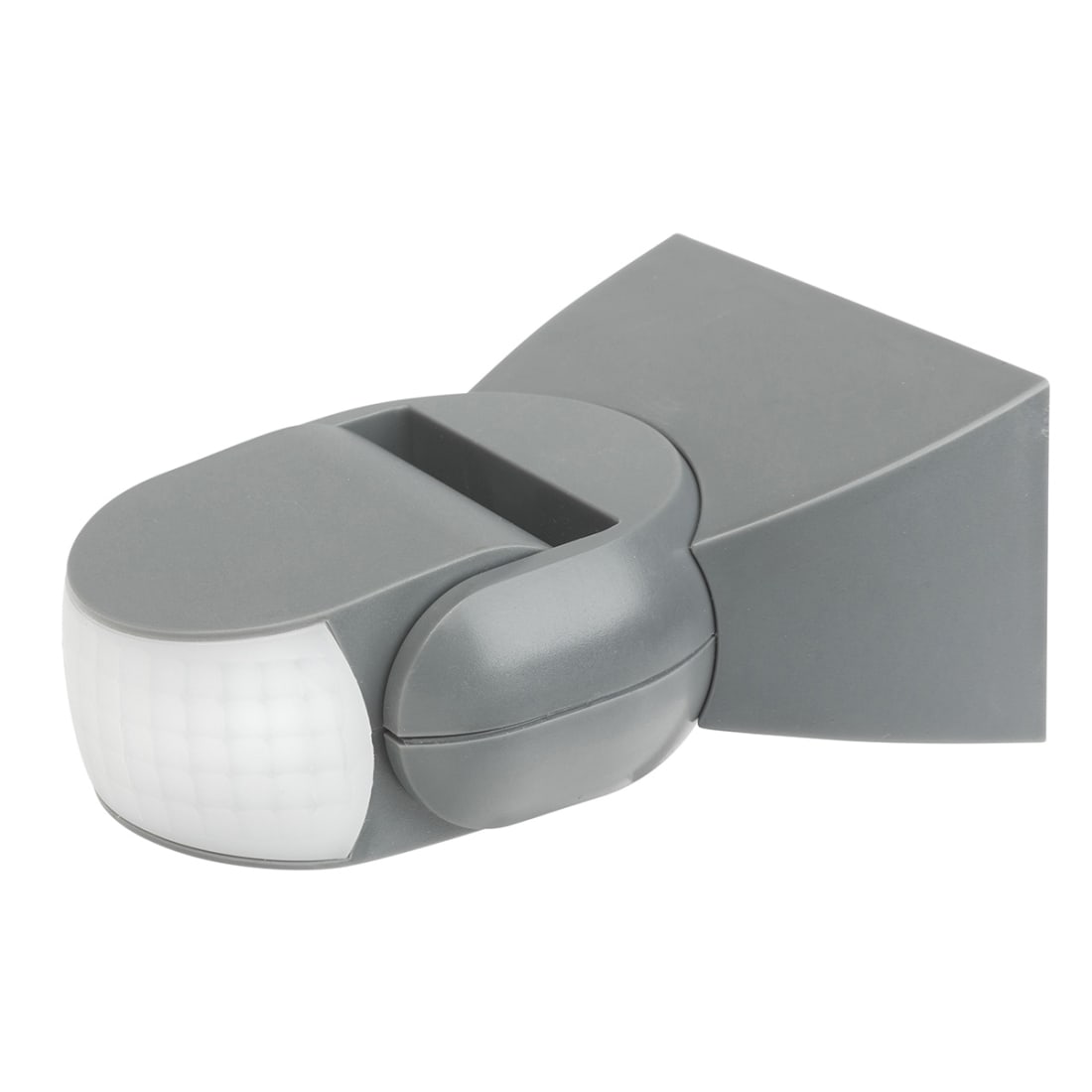

VERSA-SCAN
180 degree PIR Security Sensor
Passive Infra-red technology. Multi-segmented lens for better detection. Adjustable sensing angle. Reliable 3-wire design. Adjustable time and lux level. Manual override. IP65 weather-resistant rated. Resets to AUTO mode after 8 hours Wall mount Lux control level: 3-2000LUX (adjustable) Max Load : 1200W Incandescent Lamp 300W Fluorescent Lamp 150W LED Lamp.
SKU : 20046/08, 20046/09
SKU Family : 20046
Product Finish : Grey, Beige
Installation : Must be installed by a licensed electrician
Maximum Load : 1200W Incandescent; 300W Fluorscent; 150W LED
Sensor Range : 180 degrees x 12m range
Time on Setting : 10sec to 15min
Manual Override : Yes (Resets to AUTO mode after 8 hours)
Construction : UV resistant Polycarbonate
Ingress Protection : IP65 rated
Warranty : 2-year replacement
