Description
17HPHD1v4 HDMI to DVB
T Modulator
with HDMI Loop Through

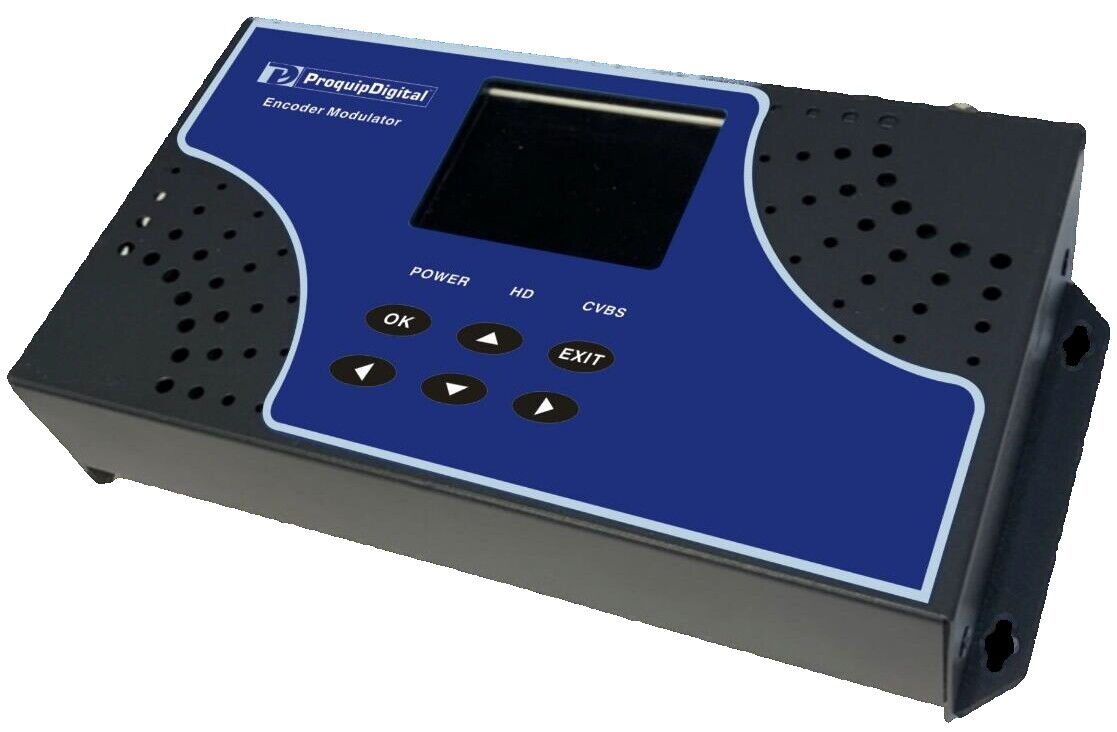

The ProquipDigital 17HPHD1v4 HDMI to DVB T RF Modulator accepts HDMI & CVBS input from the source and modulates the signal to a CATV/DVB-T1 channel.
It supports point to point, point to multipoint and multipoint to multipoint connection, display HDMI signal in every TV over existing coax cable.
New added feature of a 4K HDMI Loop Through to connect a local device/monitor.
Features:
•Supports HDMI & CVBS input and DVB T digital high definition RF signal output.
•HDMI input signal resolution up to full HD 1080P@60Hz.
•HDMI Loop Through Feature.
•Distribute one source to multiple displays with one modulator via CATV splitter.
•Multiple modulators can be installed to distribute as many channels as needed.
•Firmware upgradeable via USB port.
•Programable menu control, preset configuration to allow Plug and Play or manually
configure to meet specific requirements.
