Description
SmartBright Tri-colour Direct-lit panel, 110 lm/W, 840 neutral white, neutral white and 865 cool daylight
General Information
-
Light source engine type
LED
-
Value ladder
Value
-
CE mark
-
-
Flammability mark
For mounting on normally flammable surfaces
Light Technical
-
Luminous Flux
5,500 lumen
-
Correlated Color Temperature (Nom)
4000 K5000 K6500 K
-
Luminous Efficacy (rated) (Nom)
110 lm/W
-
Color rendering index (CRI)
>80
-
Light source color
840 neutral white, neutral white and 865 cool daylight
-
Optical cover/lens type
Acrylate
Operating and Electrical
-
Input Voltage
220 to 240 V
-
Line Frequency
50 or 60 Hz
-
Inrush current
20.4 A
-
Power Consumption
50 W
-
Power Factor (Fraction)
0.9
-
Number of products on MCB of 16 A type B
22
Controls and Dimming
-
Dimmable
No
-
Control interface
-
Mechanical and Housing
-
Housing Material
Steel
-
Optical cover/lens material
Polystyrene
-
Housing Color
White RAL 9003
-
Optical cover/lens finish
Opal
-

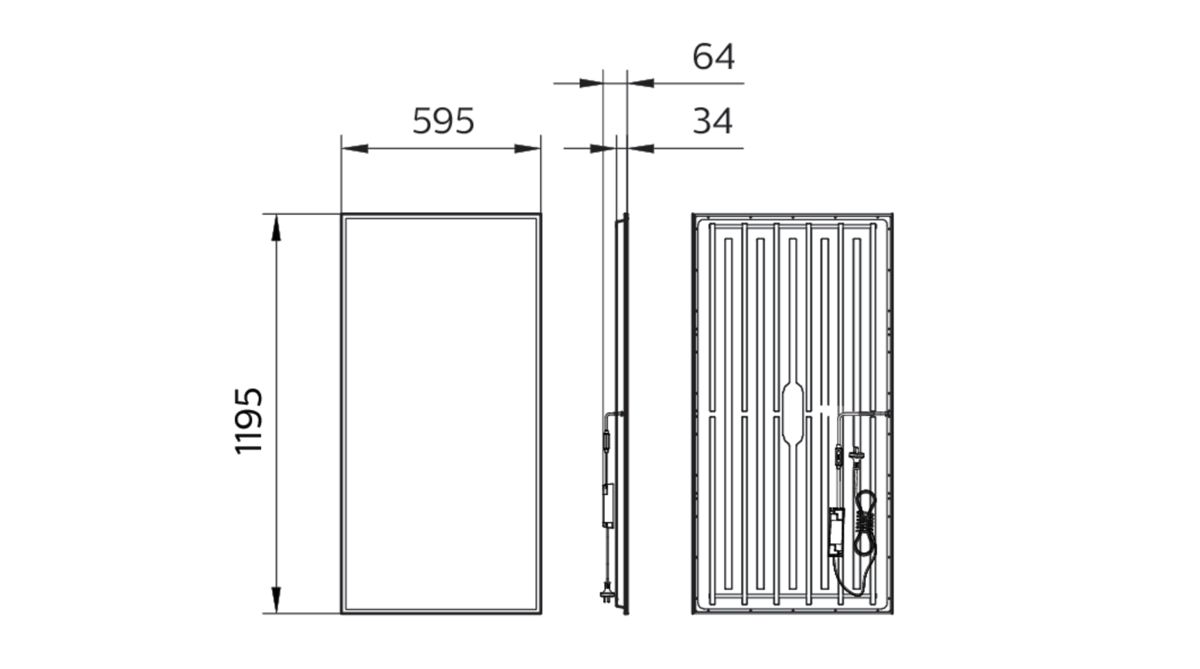

Overall length
1,195 mm
-
Overall width
595 mm
-
Overall height
34 mm
-
Effective projected area
0.711 m²
-
Dimensions (Height x Width x Depth)
34 x 595 x 1195 mm
Approval and Application
-
Ingress protection code
IP20 [Finger-protected]
-
Mech. impact protection code
IK02 [0.2 J standard]
-
Insulation Coverage Rating
Non IC Rating
-
Protection class IEC
Safety class II
Initial Performance (IEC Compliant)
-
Initial chromaticity
4000K (0.38 , 0.38), 6500K (0.31, 0.33),SDCM≤5
-
Luminous flux tolerance
+/-10%
-
Power consumption tolerance
+/-10%
Product Data
-
Full product code
871951452070799
-
Order product name
RC170B LED55S/SCCT PSU W60L120 AU G2
-
Order code
911401897281
-
Local order code
RC170BG255P6012
-
Numerator - Quantity Per Pack
1
-
Numerator - Packs per outer box
2
-
Material Nr. (12NC)
911401897281
-
Full product name
RC170B LED55S/SCCT PSU W60L120 AU G2
-
EAN/UPC - Case
8719514515109
-
Local code description
RC170BG255P6012
-
EAN/UPC - Product/Case
8719514520707
Order code: 911401897281
Full order code: 871951452070799
