Description
General Information
| Cap-Base |
G12 [ G12]
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Life to 5% Failures (Nom) |
12000 h
|
| Life To 10% Failures (Nom) |
14000 h
|
| Life to 20% Failures (Nom) |
16000 h
|
| Life to 50% Failures (Nom) |
20000 h
|
| ANSI Code HID |
C139/E
|
Light Technical
| Color Code |
930 [ CCT of 3000K]
|
| Luminous Flux (Rated) (Nom) |
7800 lm
|
| Color Designation |
Warm White (WW)
|
| Lumen Maintenance 1000 h (Nom) |
97 %
|
| Lumen Maintenance 12000 h (Nom) |
82 %
|
| Lumen Maintenance 10000 h (Nom) |
83 %
|
| Lumen Maintenance 2000 h (Nom) |
95 %
|
| Lumen Maintenance 4000 h (Nom) |
90 %
|
| Lumen Maintenance 5000 h (Nom) |
88 %
|
| Chromaticity Coordinate X (Nom) |
0.435
|
| Chromaticity Coordinate Y (Nom) |
0.396
|
| Correlated Color Temperature (Nom) |
3000 K
|
| Luminous Efficacy (rated) (Nom) |
103 lm/W
|
| Color Rendering Index (Min) |
87
|
| Color Rendering Index (Nom) |
90
|
Operating and Electrical
| Power (Nom) |
73 W
|
| Lamp Current Run-Up (Max) |
2 A
|
| Lamp Current (EM) (Nom) |
1 A
|
| Ignition Supply Voltage (Max) |
198 V
|
| Ignition Peak Voltage (Max) |
5000 V
|
| Ignition Supply Voltage (Min) |
198 V
|
| Re-Ignition Time (Min) (Max) |
15 min
|
| Ignition Time (Max) |
30 s
|
| Voltage (Max) |
90 V
|
| Voltage (Min) |
79 V
|
| Voltage (Nom) |
85 V
|
Controls and Dimming
| Dimmable |
No
|
| Run-Up Time 90% (Max) |
3 min
|
| Run-Up Time 90% (Nom) |
1.5 min
|
Mechanical and Housing
| Bulb Finish |
Clear
|
Approval and Application
| Energy Efficiency Label (EEL) |
A+
|
| Mercury (Hg) Content (Nom) |
6.6 mg
|
| Energy Consumption kWh/1000 h |
80 kWh
|
UV
| Pet (Niosh) (Min) |
8 h/500lx
|
| Damage Factor D/fc (Max) |
0.3
|
Luminaire Design Requirements
| Bulb Temperature (Max) |
500 °C
|
| Cap-Base Temperature (Max) |
250 °C
|
| Pinch Temperature (Max) |
350 °C
|
Product Data
| Full product code |
872790091141100
|
| Order product name |

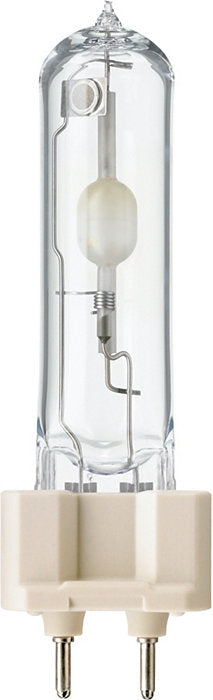

MASTERColour CDM-T Elite 70W/930 G12 1CT/12
|
| EAN/UPC - Product |
8727900911411
|
| Order code |
928185305131
|
| Numerator - Quantity Per Pack |
1
|
| Numerator - Packs per outer box |
12
|
| Material Nr. (12NC) |
928185305131
|
| Net Weight (Piece) |
0.029 kg
|
| ILCOS Code |
MT/UB-70/930-H-G12-20/90
|
