Description

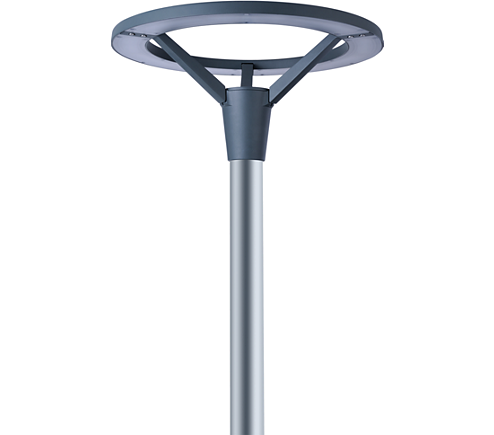

Smart Post Top G3 inherits the classic look and style of the previous generation with
improved system efficacy and light quality.;The Smart Post Top G3 optimised optical
design increases both horizontal and vertical uniformity. The highly efficient thermal
system design ensures maximum heat transfer and longer LED service life.;This
reliable luminaire system operates well in both low and high temperature
environments. It offers more than 11 years expected life, reducing maintenance
frequency and cost (based on a 50,000 hour rated life and 12 hours operation per
day);It provides a comfortable and safe atmosphere to gardens, residential areas,
courtyards, side streets, squares, parks & playgrounds.
Product data
General Information
Lamp family code -
Lamp colour code Warm white
Light source replaceable Yes
Number of gear units 1 unit
Driver/power unit/transformer PSU [ Power supply unit]
Driver included Yes
Optical cover/lens type Acrylate cover and semi-matt high-reective
optic
Luminaire light beam spread -
Control interface -
Connection Flying leads/wires
Cable Cable 450 mm without plug
Protection class IEC Safety class I (I)
Flammability mark NO [ -]
CE mark
ENEC mark -
Warranty period 3 years
Outdoor optic type Symmetrical
Constant light output No
Number of products on MCB -
RoHS mark RoHS mark
LED engine type LED
Light Technical
Upward light output ratio 0
Standard tilt angle post-top -
Standard tilt angle side entry -
Operating and Electrical
Input voltage 220 to 240 V
Input frequency 50 to 60 Hz
Smart Post-top G3
Inrush current 2.1 A
Inrush time 22.3 ms
Power factor (min.) 0.9
Controls and Dimming
Dimmable No
Mechanical and Housing
Housing material Aluminum die–cast
Reflector material Acrylate
Optic material Acrylate
Optical cover/lens material Acrylate
Fixation material Stainless steel
Mounting device 60P [ Post-top for diameter 60 mm]
Optical cover/lens shape Flat
Optical cover/lens finish Frosted
Overall height 265 mm
Overall diameter 578 mm
Colour Dark Grey
Approval and Application
Ingress protection code IP65 [ Dust penetration-protected, jet-proof]
Mech. impact protection code IK07 [ 2 J reinforced]
Surge protection (common/differential) 4/2 kV
Initial Performance (IEC Compliant)
Initial luminous flux 2300 lm
Luminous flux tolerance +/-10%
Initial LED luminaire efficacy 85.19 lm/W
Lamp colour temperature 3000 K
Colour Rendering Index 70
Initial chromaticity SDCM>5
Initial input power 27 W
Power consumption tolerance +/-10%
Application Conditions
Ambient temperature range -40 to +50 °C
Maximum dimming level Not applicable
Product Data
Full product code 911401834698
Order product name BGP161 LED2300/WW PSU 220-240V 7043 GM
Order code 911401834698
Numerator – quantity per pack 1
Numerator – packs per outer box 2
Material no. (12NC) 911401834698
Net weight (piece) 4.499 kg
