Description

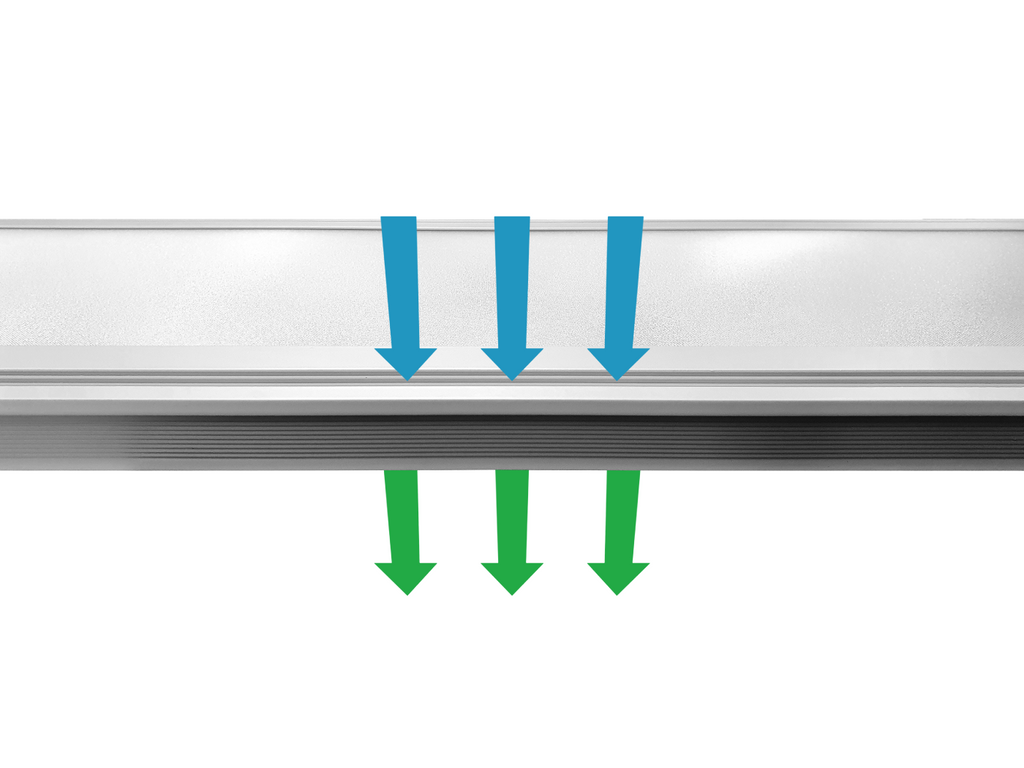

LuxAir—a Low-Glare, Low UGR Air Handling Panel—achieves a sleek, attractive look while including a distinctive design structure. Because the rear panel slot and the front air handling continuous slot are offset, black baffles are no longer necessary.
Its multi-watt, 1200x600, and 600x300 sizes offer a consistent and even light output to accommodate a broad variety of applications. The flicker-free lighting output of this product is guaranteed by its low glare micro prismatic diffuser and PMMA LGP for lifetime consistent light output. It is also available with DALI.
Features:

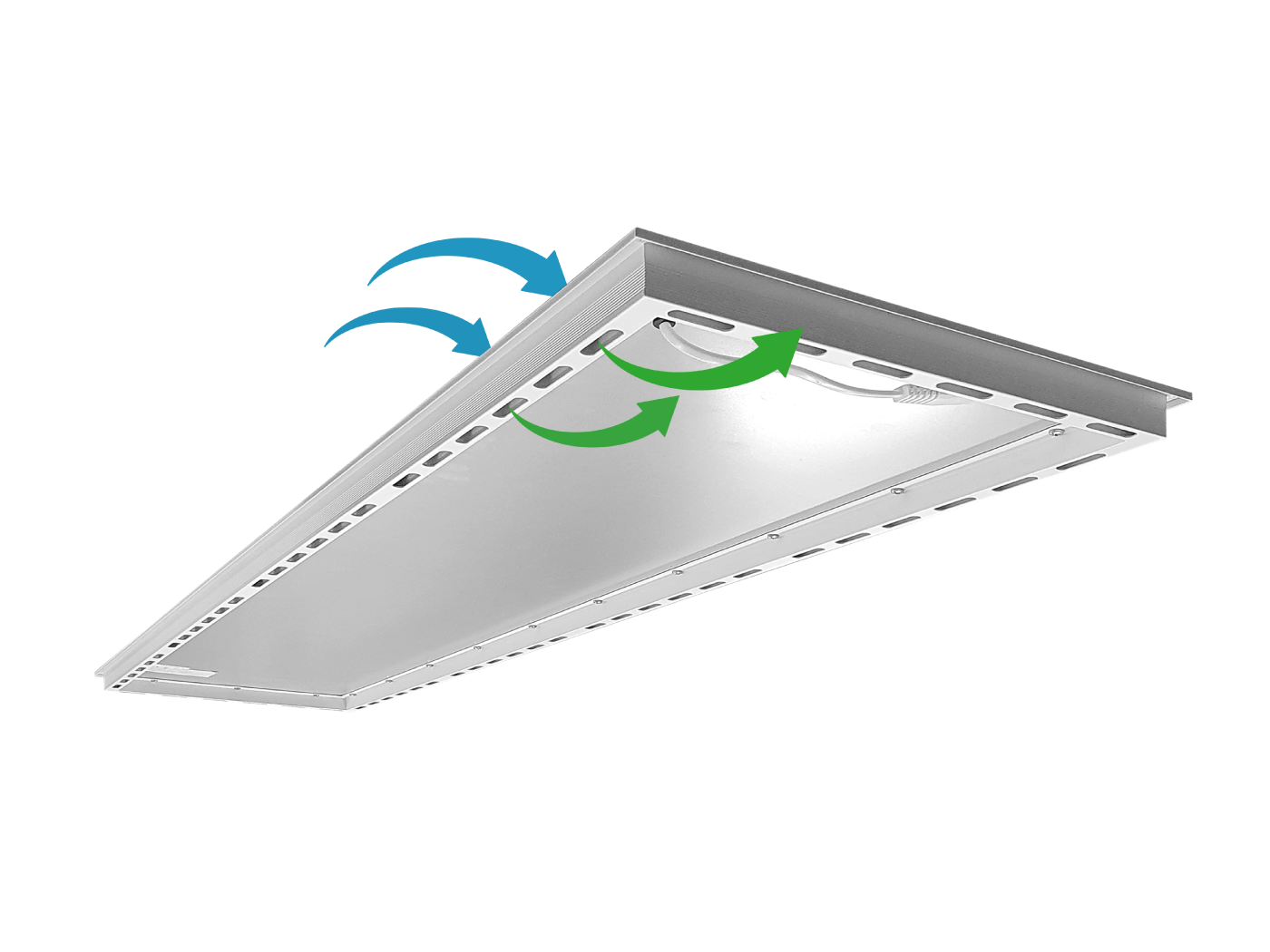

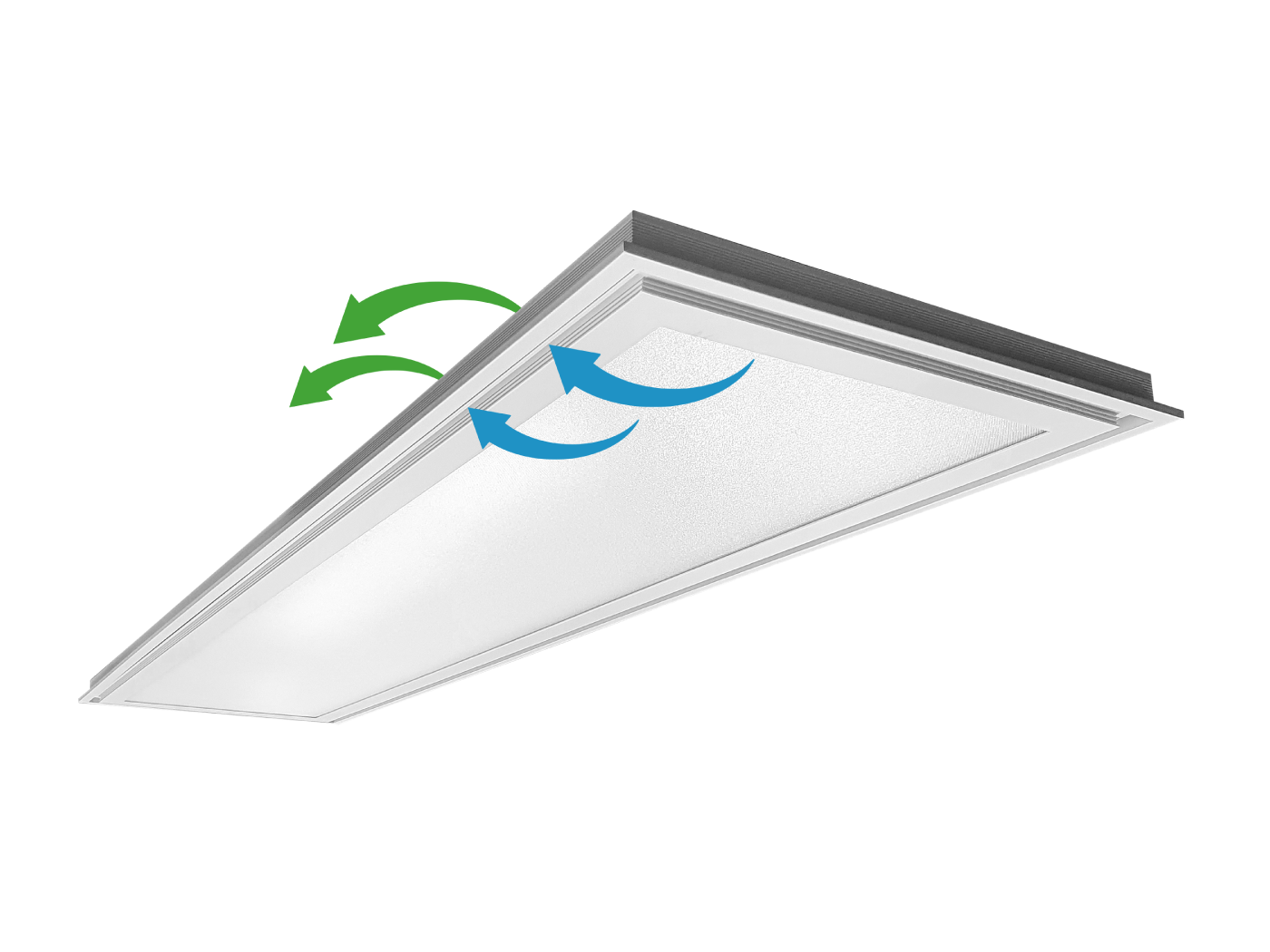

- Special frame design for air handling
- Multi-Watt
- Low-Glare micro prismatic structure UGR<19
- PMMA light guide
- 1.2m flex & plug
- DALI or 0-10V dimming driver options
Installation Option:
- Standard metric T-bar ceiling recessed installation
- Recessed plaster ceiling installation (Plaster frame is required)
Application:
- Offices
- Conference rooms
- Schools
- Retail
- Hospitality
- Aged care
- Hotels
General/Product Specs:
- IP Rate: IP20
- Input Voltage: 240V
- Light Source: SMD
- Beam Angle: 90°
- CRI: 80
- Wattage: 20-32W
- Color Tepm: 4000K
- Lumens: 130Lm/W
- Material of the Diffuser: Micro-Prism PC
- Dimension: 595 x 595 x 25
