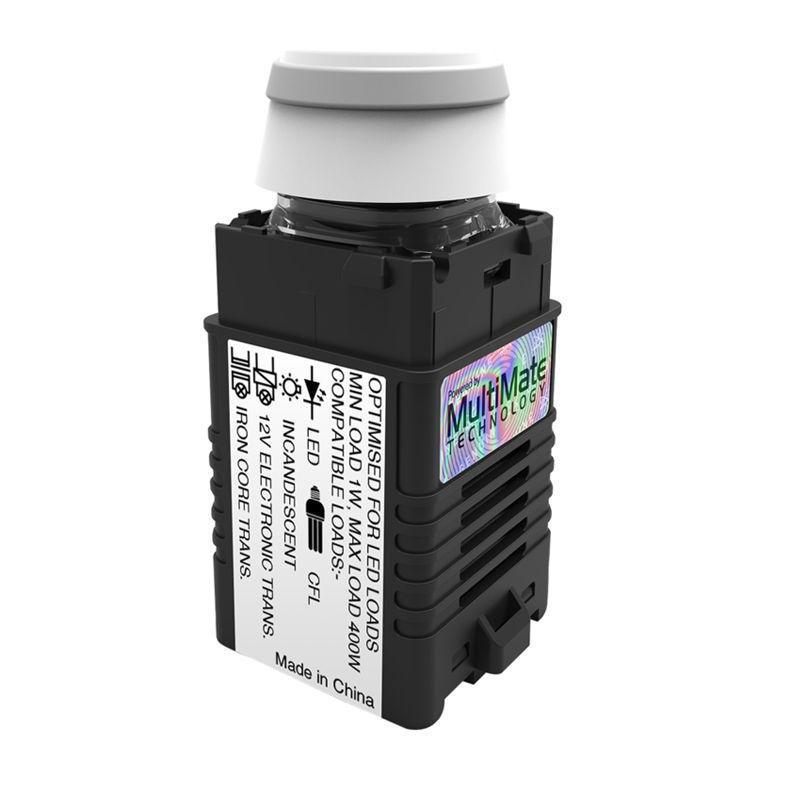

The LEDsmart+ Rotary Dimmer Switch delivers precise LED lighting control with built‑in multi‑way functionality. Its rotary dial and tap‑on/off feature allow effortless adjustment of brightness from minimum to maximum levels. Programmable functions include a 30‑minute dimming schedule for both wake‑up and bedtime modes, while white LED indicators provide clear status feedback. Constructed for Australian standards, it supports 220‑240 V AC and a maximum load of 400 W.
| Rated average life |
5000 hrs |
| Wattage |
400 W |
| Operating Temperature (Max) |
50 °C |
| IP Rating |
IP20 |
| Nominal Line Voltage |
220‑240 V AC |
| Line Voltage Frequency |
50 Hz |
| Connection Type |
2‑Wire Active/Load |
| Minimum Load |
2 W |
| Programmable |
Yes |
| Dimmable |
Yes |
