Description

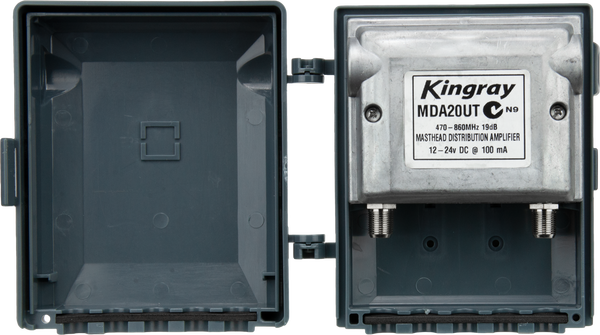

The MDA15 range is based on a concept of convergent technology. The characteristics of the IC selected provides a very low noise figure and output figure that equals our DW42, 118dB @ -60 dB IMR, hence the name Masthead Distribution Amplifier (MDA).
The masthead is powered remotely via a Kingray PSK06 series power supply (sold separately).
Features:
Frequency Range 470-860 MHz
19dB Maximum Gain
Low Noise Figure <1.6dB
High Output Figure of 118dB IMR3 (DIN45004B)

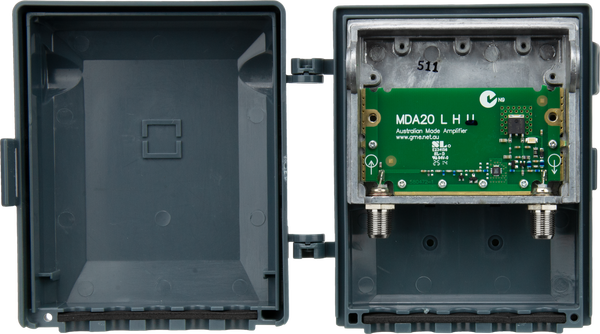

Fully Shielded Die-cast Housing

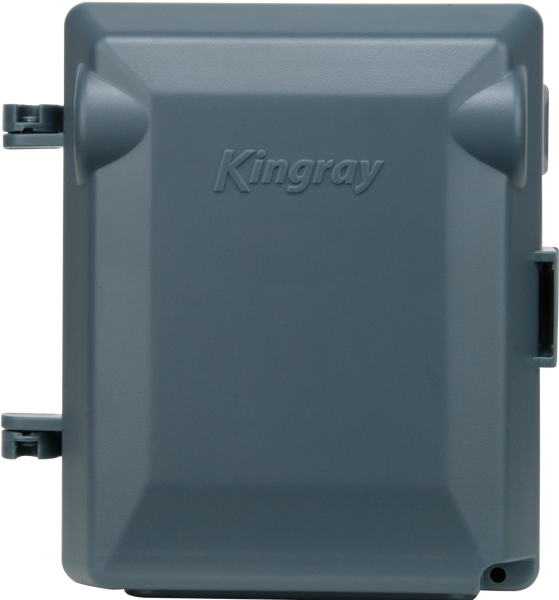

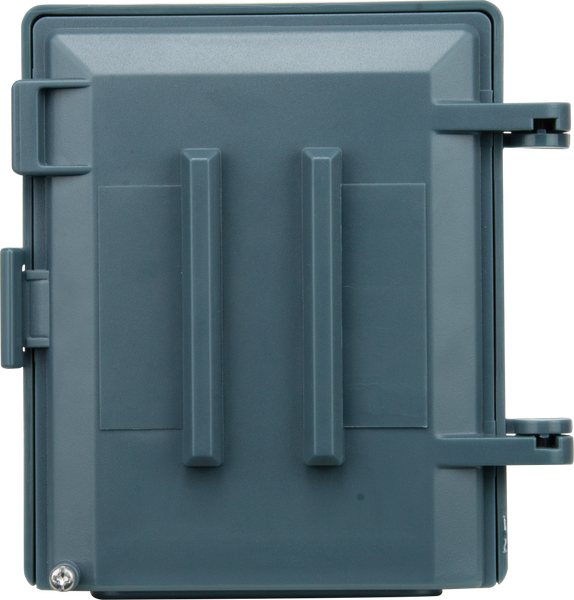

Weatherproof Housing
Connectors: F-Type
Power Consumption: 100mA
Suitable Power Supply: PSK06 Series
Inclusions:
MDA20H Masthead Amplifier
Cable Tie
Instruction Manual
