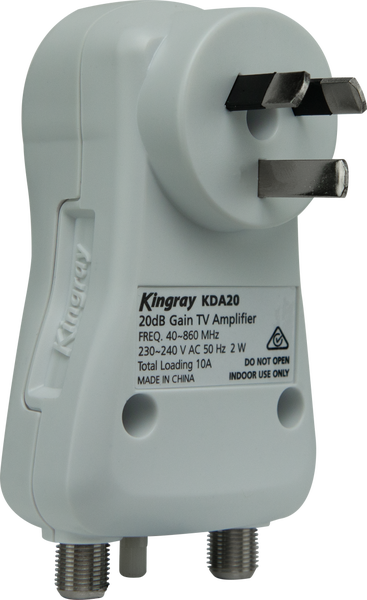

Kingray KDA20 20dB Distribution Amplifier, Plug into Mains Power, Single input/output F-Type connectors, 44-860MHz
Kingray KDA20 20dB Distribution Amplifier, Plug into Mains Power, Single input/output F-Type connectors, 44-860MHz
Roll over image to zoom in Click on image to zoom
Kingray KDA20 20dB Distribution Amplifier, Plug into Mains Power, Single input/output F-Type connectors, 44-860MHzKingray KDA20 20dB Distribution Amplifier, Plug into Mains Power, Single input/output F-Type connectors, 44-860MHz

Kingray KDA20 20dB Distribution Amplifier, Plug into Mains Power, Single input/output F-Type connectors, 44-860MHz

Electrical Products Pty LtdSKU: 04BKDA20
Price:
$54.55

Description

The KDA20 is VHF/UHF television amplifier with one input and one output. Designed to plug directly into the power point, the KDA20 has the innovative feature of 240 volt piggyback plug.

Features:

Frequency Range 44-860MHz
20dB Maximum Gain
10dB Gain Control
Single Input
Single Output

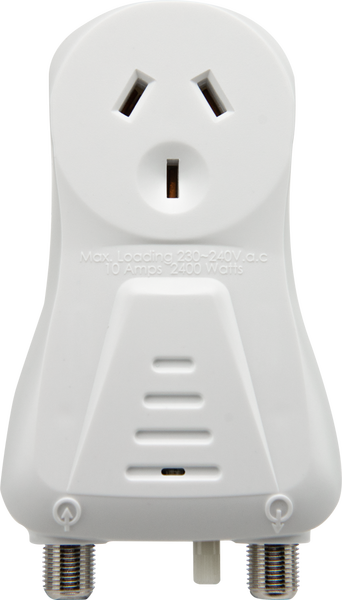

240V Piggyback Plug
High Output Figure of 100dB IMR3 (DIN45004B)
<4dB Noise Figure
Connectors: F-Type
Mains Powered 230-240V AC
Inclusions:

KDA20 Distribution Amplifier
