Description

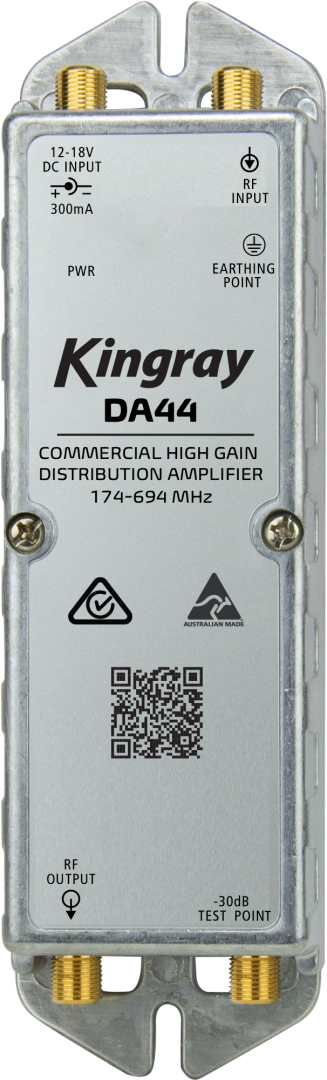

Kingray’s DA44 distribution amplifier has been designed for today’s digital television signals. The technology used is hybrid bipolar and GaAs technology, which allows for a greater output capacity, whilst having a lower noise figure. The amplifier contain mid-stage gain controls, a number of flexible powering options and are built in a fully shielded die-cast housing. The DA44 distribution amplifier has a single RF input, single RF output & a test port. Power supplied sold separately.
Key Features
-
Frequency Range 174~694 MHz (Channels 6 to 51)
-
44dB Maximum Gain
-

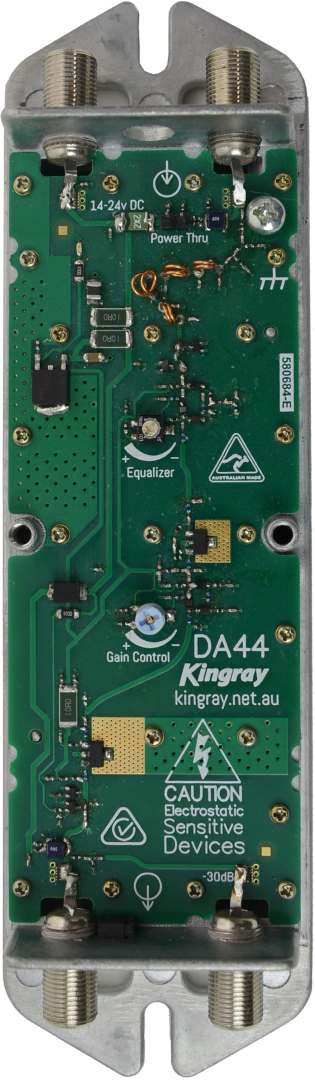

10dB Mid-Stage Gain Control
-
Single RF Input
-
Local or Remote Powering Options
-
F-Type Connector for Power Input
-
Adjustable Slope Control of 0dB to 10dB
-
-30dB Test Point
-
Ability to send power out via the RF Input
-
High Output Figure: 118dB IMR3 (DIN45004B)
-
Connectors: F-Type
-
Power Consumption: 300mA
-
Operating Voltage: 18V DC
-
Operating Temperature: -10ºC to 50ºC
-
Suitable Power Supply: PSK18M or PSK182F
In the box
-
DA44 Amplifier
-
Instruction Manual
-
Mounting Screws
