Description

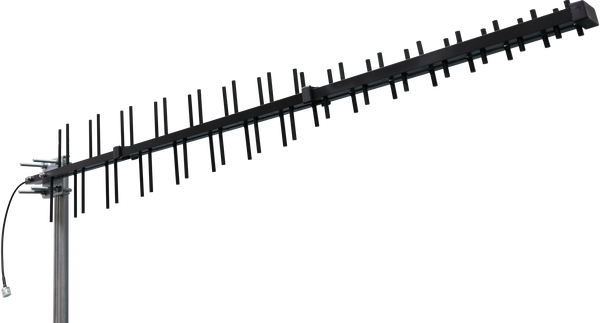

Hills Antenna 3G/4G/5G LPDA Yagi Antenna
The Hills Antenna 01RHLPDA LPDA Yagi Antenna is an external antenna which can be used to improve reception in poor 3G / 4G & 5G signal areas, it can be used on any mobile network, in any area.
The Hills Antenna 01RHLPDA LPDA Yagi Antenna covers all cellular bands between 698 and 4000 MHz with a maximum gain of 14dBi.
Built strong, the aluminium construction has high resistence to adverse weather conditions.
Features:-
Frequency Range: 698 - 960Mhz / 1710 - 4000Mhz
Impedance: 50 Ohm
Gain: 12/14dBi
Front to Back Ratio: =15dB
Maximum Power Input (Watts): 50 Watt
Connector: N Type Female
Cable: RG141
Cable Length: 300mm
Dimensions: (L) x (W) x (H): 1235mm x 205mm x 40mm
Mounting Bracket Mast Diameter: 30mm - 50mm
Operating Temperature: -40°C to 65°C
Weight: 1.8Kg
