Description

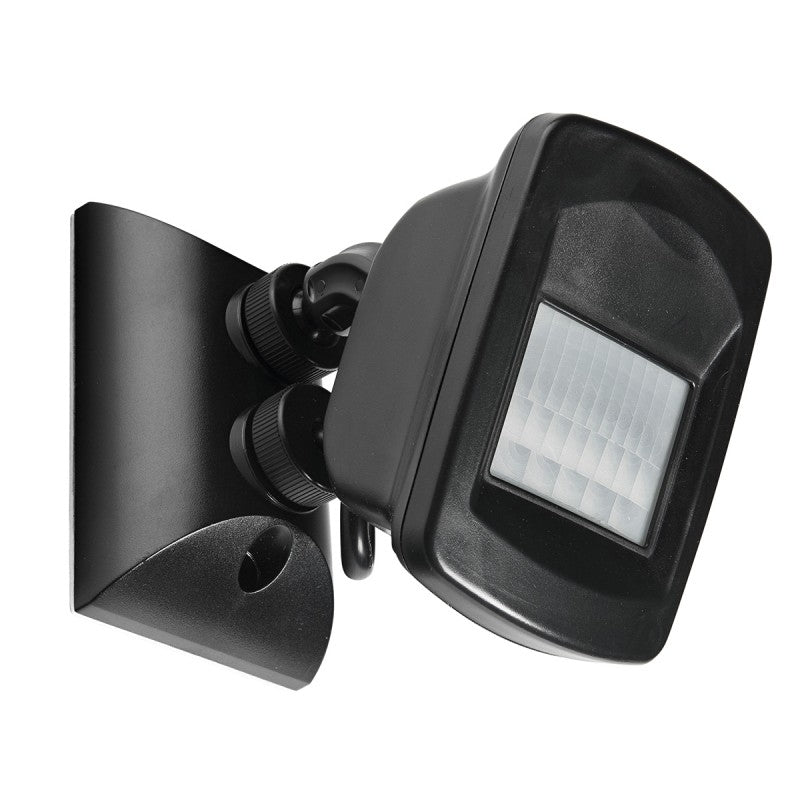

FLEXISCAN
PIR Security Sensor (Series 2)
LED Compatible. Passive Infra-red technology. Flexible adjustable arm. Multi-segmented optical lens for better detection. Reliable 3-wire design. IP66 weather-resistant rated. Easy to mount, wall or ceiling installation. Heavy duty switching circuitry, suitable for large loads. Adjustable time, sensitivity and lux level. Resets to AUTO mode after 8 hours Max Load: 2400W Incandescent Lamp 1200W Fluorescent Lamp 300W LED Lamp Power consumption: 0.7W 5 Year Warranty
Additional Information
SKU : 18562/06, 18562/09
SKU Family : 18562
Product Finish : Black, Beige
Installation : Must be installed by a licensed electrician
Maximum Load : 2400W Incandescent; 1200W Fluorescent; 300W LED
Sensor Range : 110 degrees x 18m range
Time on Setting : 10sec to 20min
Manual Override : Yes (Resets to AUTO mode after 8 hours)
Construction : UV resistant Polycarbonate
Ingress Protection : IP66 rated
Warranty : 5-year replacement
