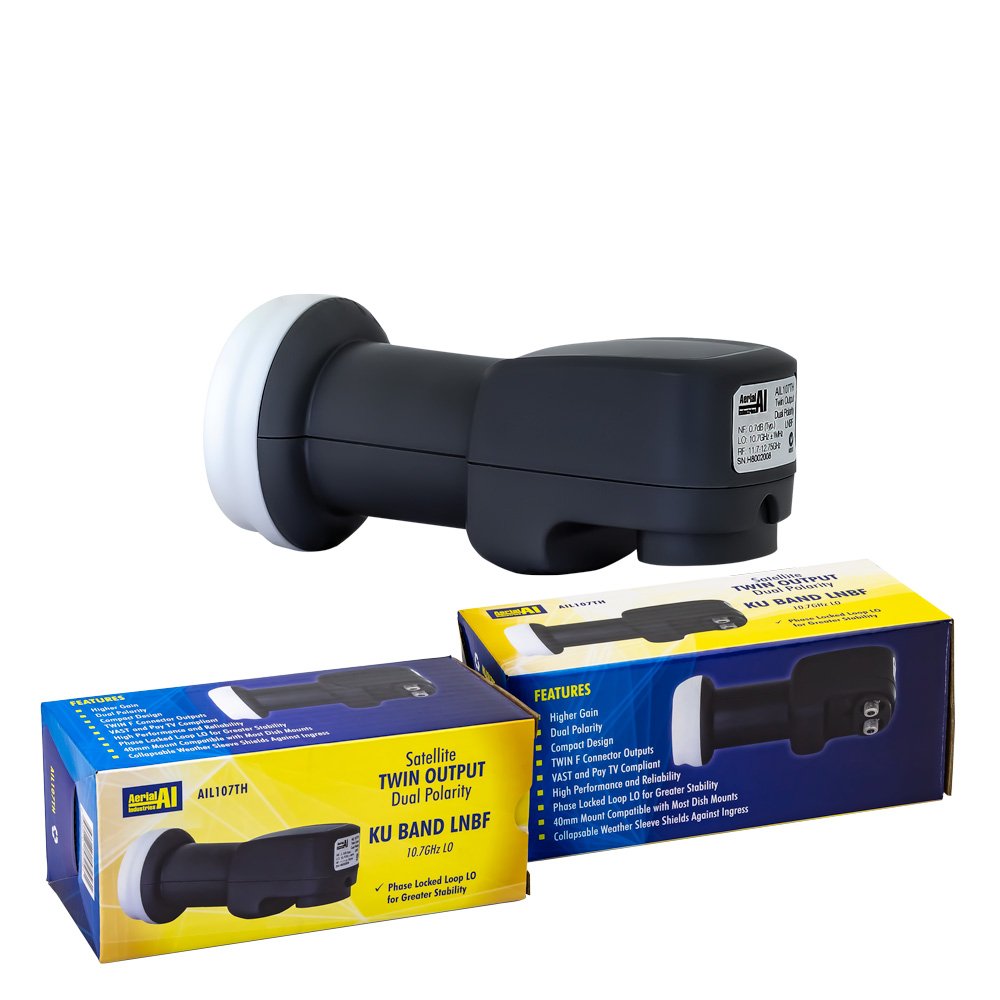

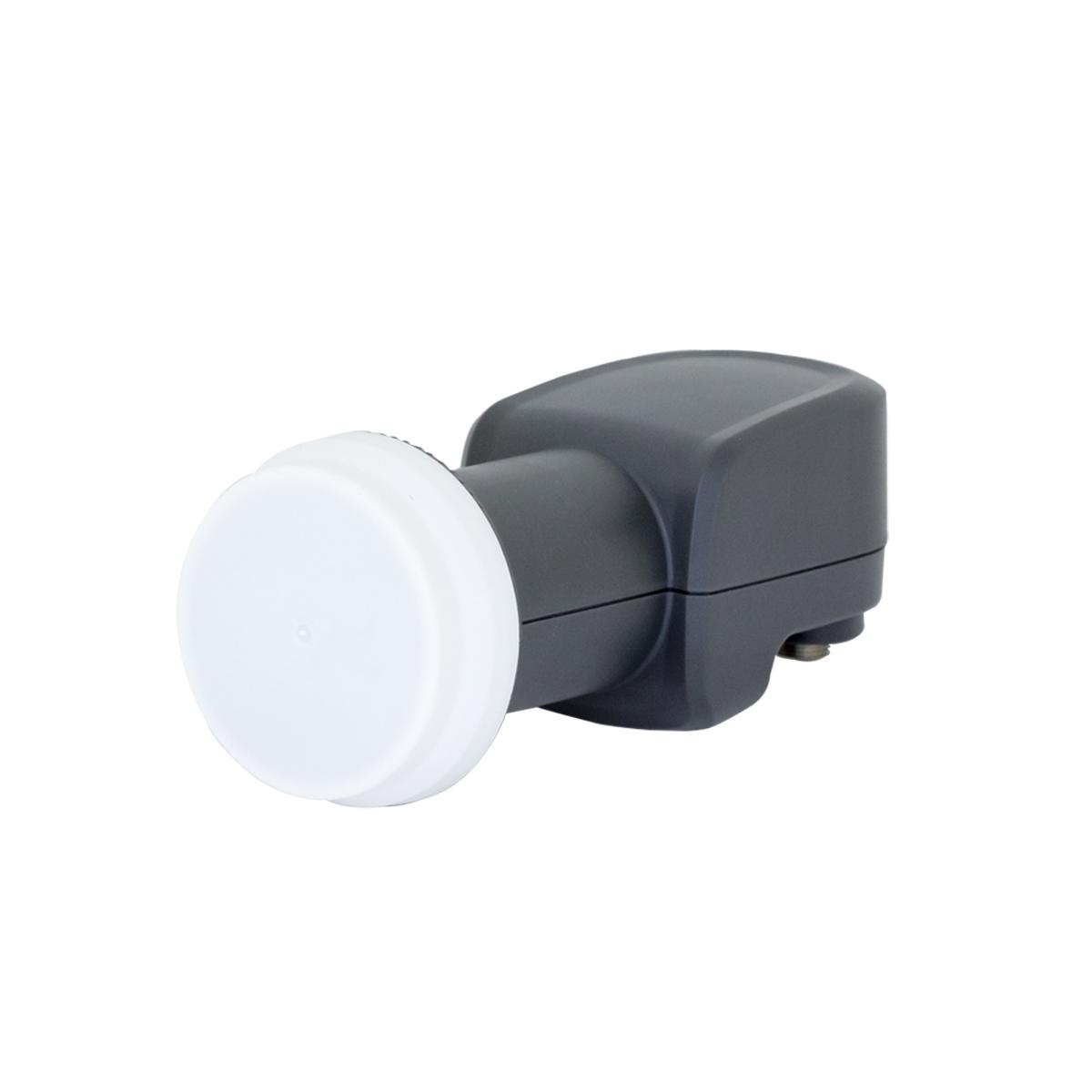

Dual Output Dual Polarity KU Band LNBF LO 10.7 GHz, High Gain AIL107TH
Outputs 2
Input Frequency Range 11.7GHz to 12.75GHz
Output Frequency Range 1000MHz to 2050MHz L.O. Frequency 10.7GHz L.O.
Accuracy Initial Accuracy (@ 25°C): ±1MHz L.O.
Temperature Drift -30oC to +60oC: ±1.5MHz L.O.
Phase Noise @ IKHz Offset: -60dBc/Hz @ I0KHz Offset: -80dBc/Hz @ I00KHz Offset: -95dBc/Hz Noise Figure @ 25°C: 0.7dB (typ.)
Conversion Gain @ 25°C: 60dB to 72dB
Gain Flatness 6dBpp (typ.) / entire band 1.5dBpp (typ.) / 27MHz L.O.
Spurious -30dBm max.
Image Rejection 40dB min.
Output VSWR 2.0:1 Cross-Pole Isolation 20dB min.
Supply Voltage Vertical Polarisation: 10.5V to 14.5V Horizontal Polarisation: 15.5V to 21.0V Current consumption 100mA max. 115mA max.
Load Impedance 75Ohm Reflector Type Offset F/D Ratio 0.6 Feedarm
Mount 40mm Ø
Storage Temperature -30°C to +60°C

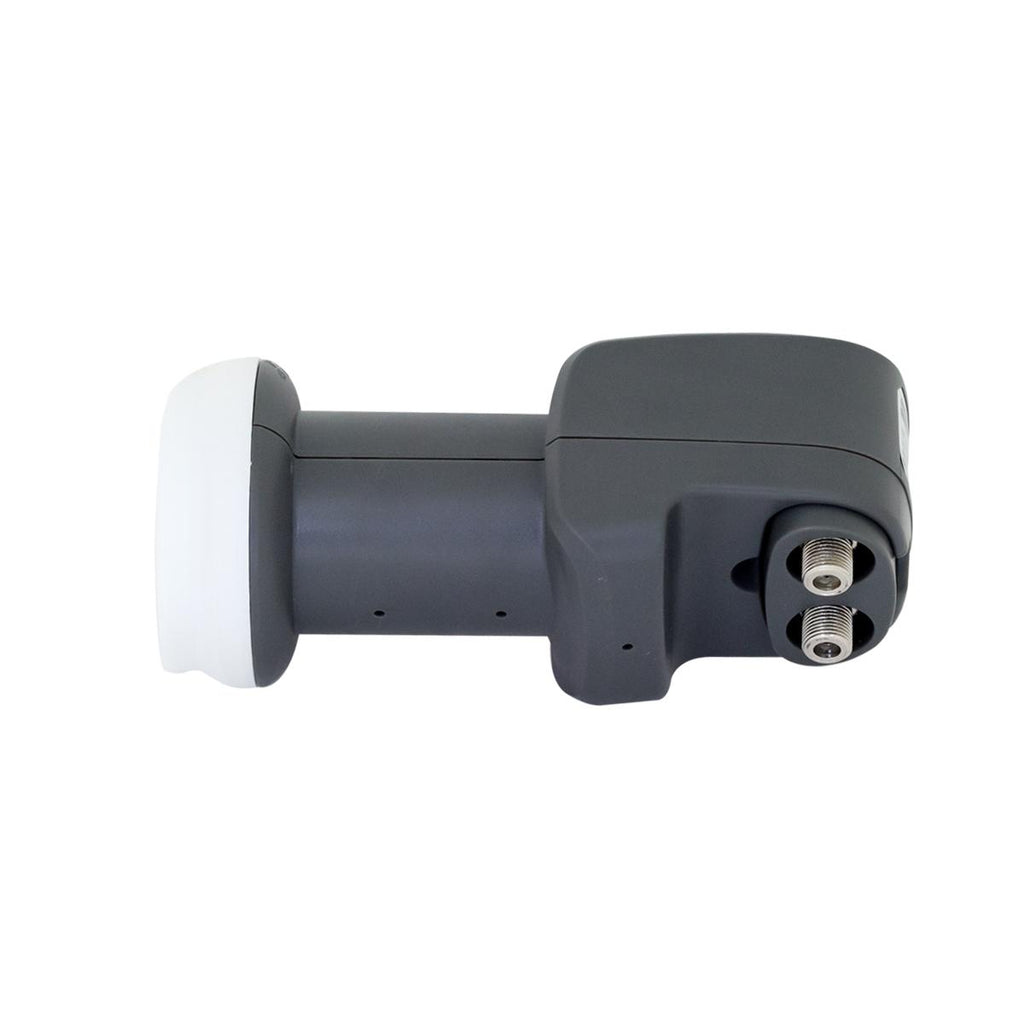

Output Connector 75Ω F type
