Description

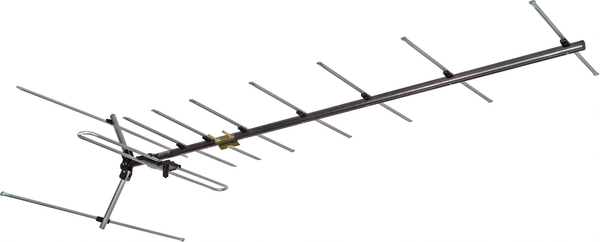

Digitek LTE Series 10 Element Outer Metropolitan Premium Yagi VHF Antenna
Features:-
F-Type Balun with LTE Low Pass Filter
Snap out reflectors
Stainless Steel screws on connection points
Heavy Duty construction on all components
Designed & engineered in Australia for Australian conditions & Australian digital television transmissions
12mm extruded aluminium heavy-duty elements
Tough powder coated finish
UV stabilised plastics
Bifurcated rivets - Strongest in the industry
Horizontal and vertical mounting options
U-bolts & Clamps fitted
Specification:-
Number of Elements: 10
Band: 3 (VHF)
VHF Channels: 6 - 12
Forward Gain: >15dB
Front to Back Ratio: 29dBi
Assembled Dimensions
Length: 2035mm
Width: 900mm
Height: 600mm
Weight 1.78kg
