Description

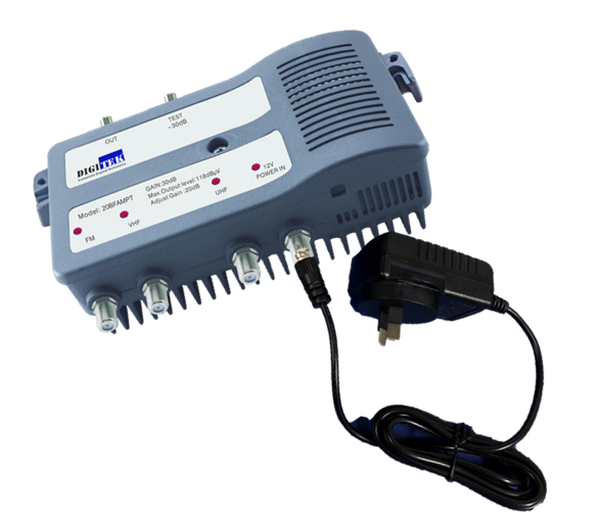

The Digitek Broadband Amplifier has been designed for Free To Air (Terrestrial) applications.
Features:
- All ports F Type female connector 75Ω
- Zamak housing with protective cover
- Easily accessible adjustment controls
- Low Noise Figure
- High Output level
Impedance: 75Ω
Frequency Range:
FM: 47-108MHz
VHF: 174-230MHz
UHF: 470-860MHz
Gain: 30±2dB
Return Loss: ≥10dB
Adjust Gain Level: 20±2dB
Noise Figure: ≤5dB
Max. output Level: ≥115dBμV
Power: 12VDC 500mA SMPS
Connectors: F Type (f)
Operating Temperature: -10 to +60 ℃
