Description

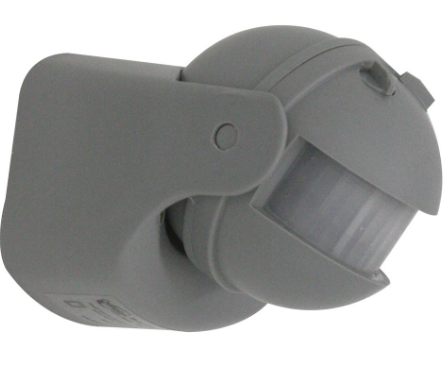

CS1100 PIR Sensor
- No minimum load requirement
- Mounting between 2.5 and 3.5 metres above ground
- PIR sensor with a range of 12m
- Horizontal arc sensitivity of 180°
- Adjustable controls for sensitivity (Lux) and time (Dwell)
- Suitable for 24/7 operation
- Manual override mode to bypass PIR sensor
- IP44
- Suitable for protected exterior applications, walls and under eaves
| Compliance: | Ta40, IP44, Non-Dimmable |
|---|---|
| Dimensions: | W:85mm x H:70mm x D:95mm |
| Applications: | Designed for services areas, corridor, where light control is required. |
| Reference | Ref Number | Colour | ||
|---|---|---|---|---|
| 26296 | CS1100S | Grey |
