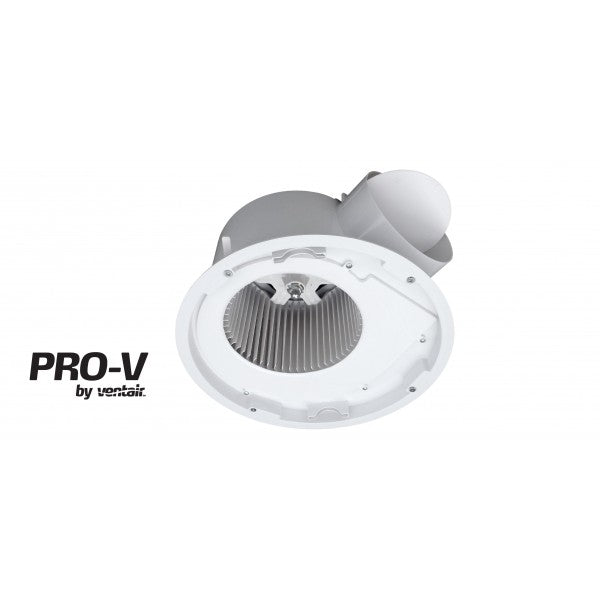

AIRBUS 225 - 296mm Cut-out Premium Quality Side Ducted Exhaust Fan - BODY ONLY - with inbuilt 1-25 min timer, 4 pin plug and socket included - PVPX225T
Roll over image to zoom in Click on image to zoom
AIRBUS 225 - 296mm Cut-out Premium Quality Side Ducted Exhaust Fan - BODY ONLY - with inbuilt 1-25 min timer, 4 pin plug and socket included - PVPX225T

AIRBUS 225 - 296mm Cut-out Premium Quality Side Ducted Exhaust Fan - BODY ONLY - with inbuilt 1-25 min timer, 4 pin plug and socket included - PVPX225T

VentairSKU: PVPX225T
Price:
$202.82

Description

Engineered to provide precision control over airflow, this motor is perfect for achieving the ideal ventilation conditions in any environment. With customizable timer settings, you can effortlessly create a comfortable and healthy atmosphere in your space.

Features

  • Moderate level air extraction

  • 250mm Fascia size to suit 225mm motor

  • Suits duct runs 0-3m

  • Ideal for multi-story applications

  • High quality Japanese Ball Bearing Motors

  • Super low profile

  • Easy to install and clean

  • Back-draft stopper included

  • Built in timer included

  • Four pin plug and socket included

  • 1-25 minute adjustable run on function (pre-set to approx. 7 mins)

  • Warranty: 5 Years

Specifications

Model Name

AIRBUS 225 Body

Model Number

PVPX225T

Exhaust Motor Power

45w

Motor Wattage

38w

Air Delivery

290m³h

Noise Level

42dB(A)

Ball bearing motor

Yes

Cut out size

Ø296mm

IP Rating

IPX4 (What is this?)

Min. install depth

200mm

Duct outlet size

150mm

Fan size

225mm

Installation

4 pin plug and socket included

Built In Timer

Yes

Warranty

5 years



FOUR PIN PLUG AND SOCKET
