Description

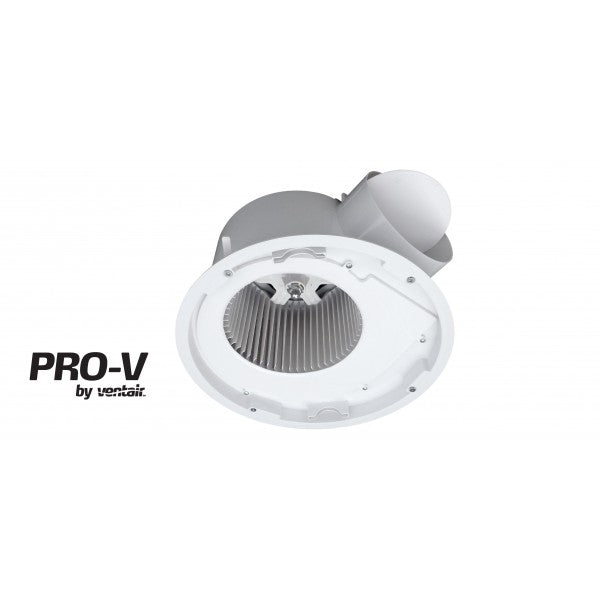

Engineered for maximum efficiency and reliability, this fan is a must-have for anyone seeking the perfect balance of functionality and style. Transform your environment with the Airbus HF 200 side ducted exhaust fan and experience a breath of fresh air like never before.
Features
-
Moderate level air extraction
-
Fascia size to suit is 200mm
-
Suits duct runs 0-3m
-
Ideal for multi-story applications
-
High quality Japanese Ball Bearing Motors
-
Super low profile
-
Easy to install and clean
-
Back-draft stopper included
-
Built in timer included
-
4 pin plug and socket included
-
1-25 minute adjustable run on function (pre-set to approx. 7 mins)
-
Warranty: 5 Years
Specifications
|
Model Name |
AIRBUS 200 Body |
|
Model Number |
PVPX200T |
|
Motor Wattage |
25w |
|
Air Delivery |
175m³h |
|
Noise Level |
38dB(A) |
|
Ball bearing motor |
Yes |
|
Side outlet duct size |
Ø100mm |
|
Cut out size |
Ø240mm |
|
IP Rating |
|
|
Min. install depth |
200mm |
|
Duct outlet size |
100mm |
|
Installation |
4 pin plug and socket included |
|
Built In Timer |
Yes |
|
Warranty |
5 years |
FOUR PIN PLUG AND SOCKET
