Description
12v 200w Waterproof IP67 LED Driver LED Power Supply Constant voltage DC - VHO-200-012B5
Features
* Constant voltage output
* 100% full load burn-in test
* Dry, damp and wet location
* Over voltage/over load/short circuit/over-temp protection
* IP67 waterproof design
Technical Parameters
| AC input range | 170-265Vac/50-60Hz | Operating temperature | -30℃ - +60℃，Tc：80℃ |
| Input surge current | <25A/110Vac ; <15A/230Vac | Storage temperature | -40℃ - +80℃ |
| Power Factor | 0.5-0.7 | Certification | EN61347-1;EN61347-2-13;SELV |
| Withstand voltage | 2000V/3750V | Dimensions | L240*W71*H46(mm) |
| Protection | OCP,OVP.SCP-Auto Recovery | Weight | 1210g |
Product List
| NO. | Output power | Model | Input voltage | Output voltage | Output current | Ripple and noise | Efficiency | Wiring request |
| 1 | 200W | VHO-200-012B5 | AC170-265V | DC12±0.5V | 16.67A max | 600mV max | 82% |
VDE H03VV-F 0.75mm²
Input:200mm
Output:200mm
|
Note: The above are our standard products, parameters other than standard products can be designed according to customer requirements

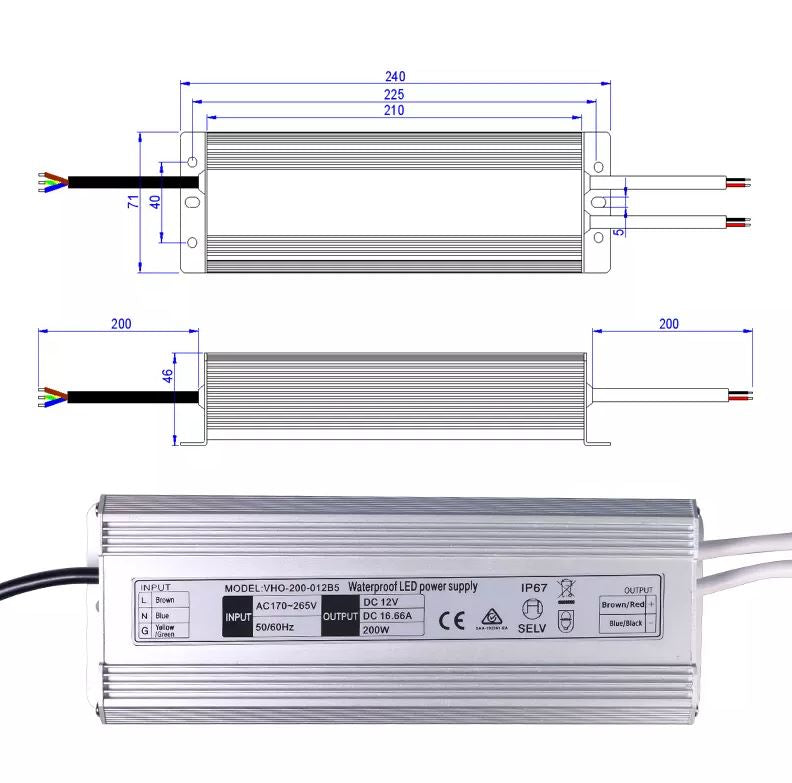

Installation Size
