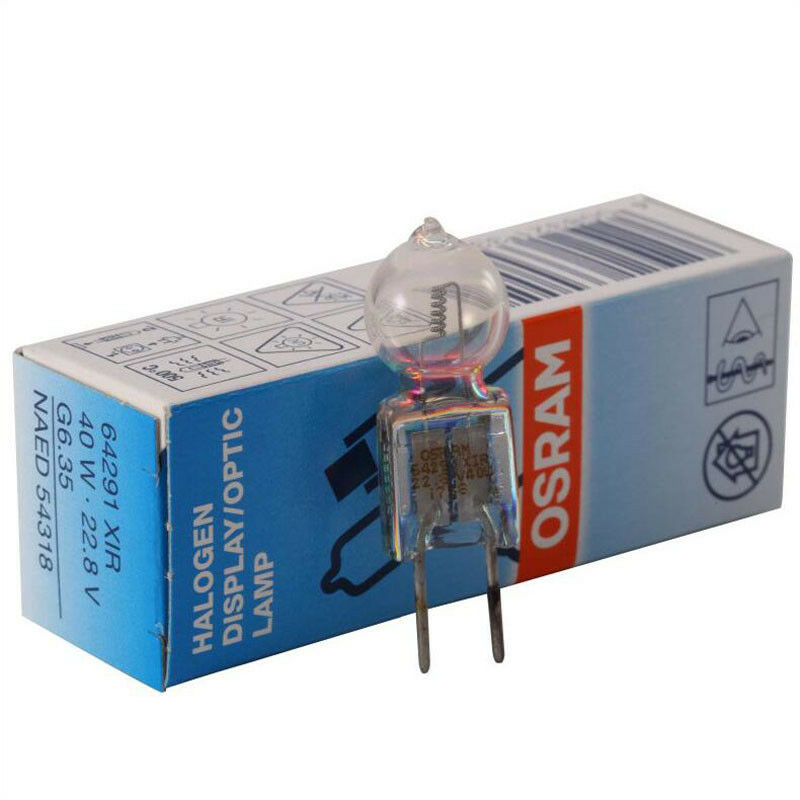

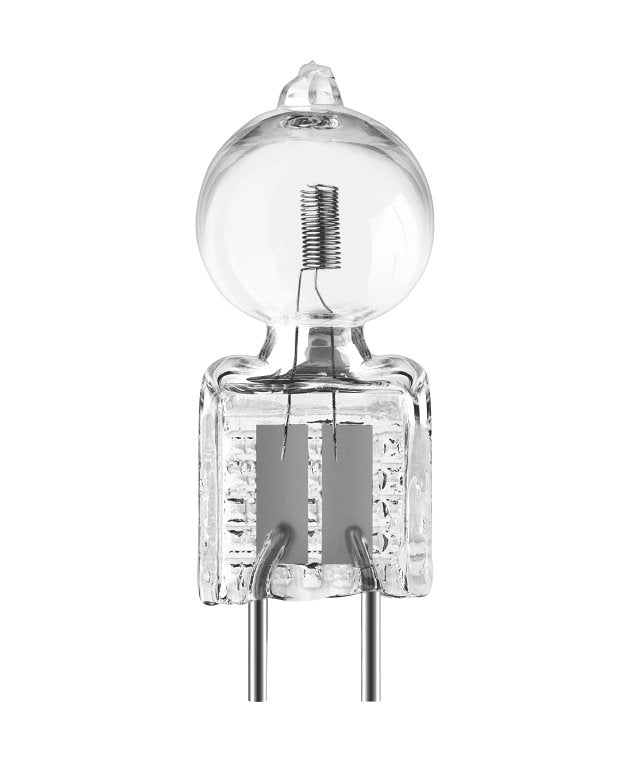

OSRAM 64291 XIR 22.8V40W G6.35 MAQUET Hanaulux 3000 Surgical Shadowless Lamp
Product features
- Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
- Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
- HLX tungsten halogen low-voltage lamp with or without reflector
- Dimmable (HLX)
Product benefits
- Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
- Instant light (HLX)
Areas of application
- Lamps for special luminaires
- Medical fiber optics (HLX)
Electrical data
|
| Nominal voltage |
22.8 V |
| Nominal wattage |
40.00 W |
Photometrical data
|
| Color temperature |
3150 K |
| Nominal luminous flux |
1200 lm |

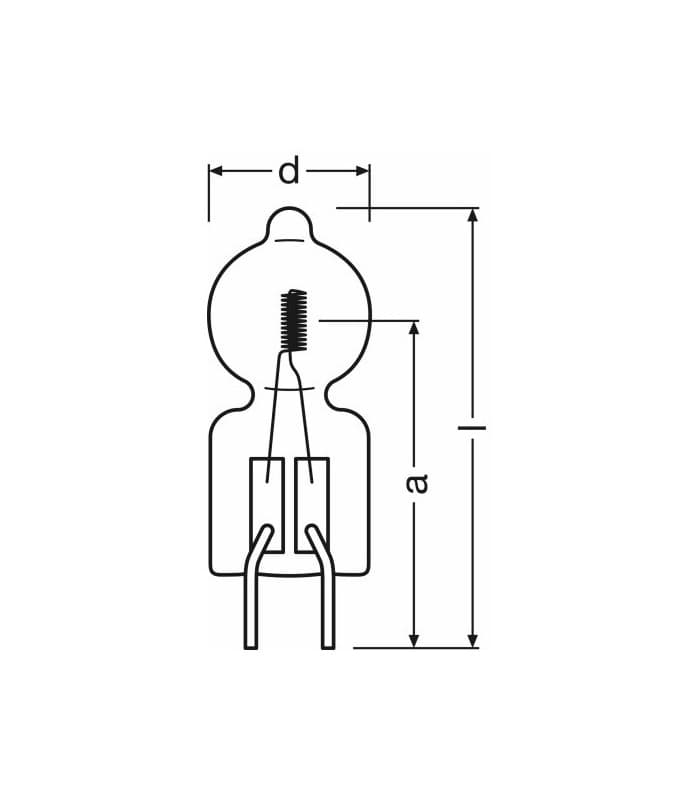

Dimensions & weight
|
| Diameter |
12.0 mm |
| Length |
44.0 mm |
| Light center length (LCL) |
30.0 mm
|
| Filament length |
3.90 mm |
| Illuminated field |
3.9*1.4 mm² |
| Filament diameter |
1.4 mm |
Additional product data
|
| Base (standard designation) |
G6.35 |
| Minimum diameter of lamp enclosure |
12 mm |
Capabilities
|
| Dimmable |
Yes |
| Burning position |
h90 |
Certificates & standards
|
| EEI – Energy Label |
B |
Country specific categorizations
|
| Order reference |
64291 |
