Description
KVM extender for HDMI video signal, USB (keyboard / mouse) and infrared signal (IR). It consists of two modules that are interconnected with each other using Cat.5e or Cat.6 cable. It allows working at a maximum resolution of 4K HDMI video and 1080p Full HD. The maximum cable distance can be up to 120m.
specs
- HDMI, USB and IR video extender.

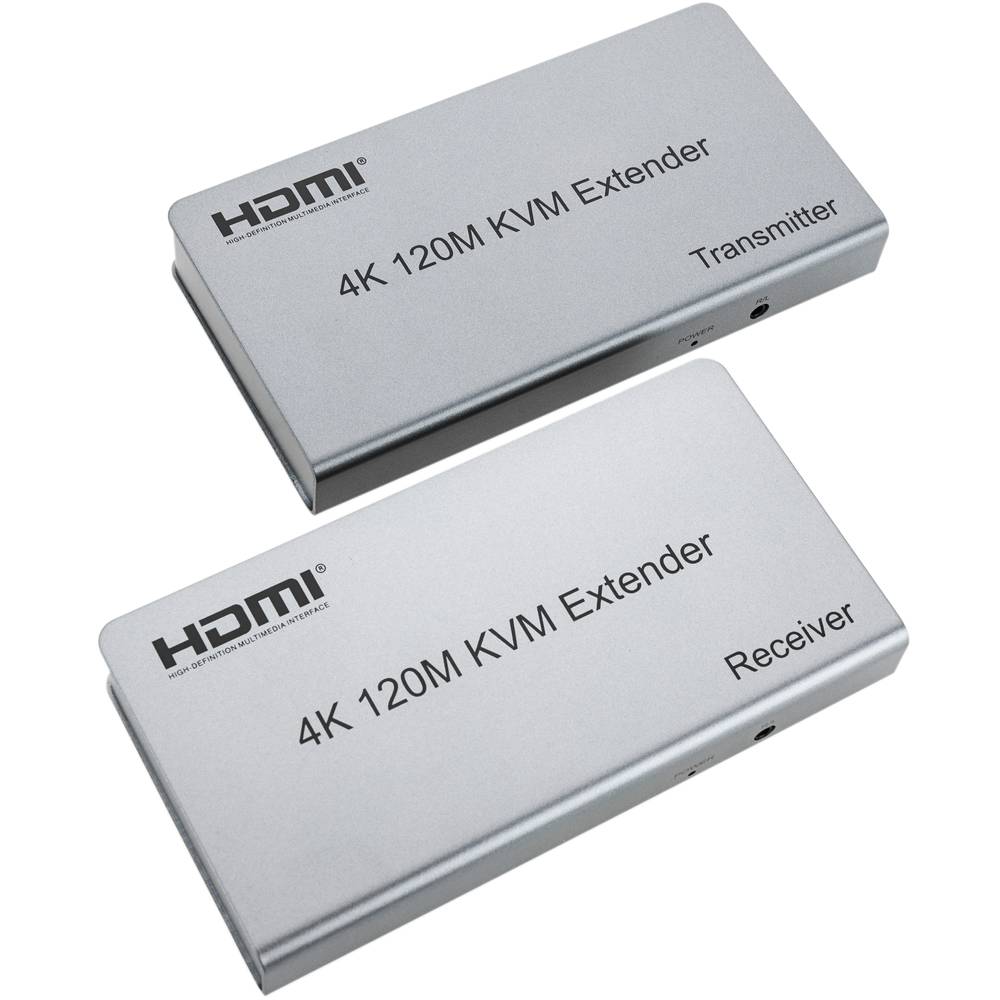

- It consists of a local module and a remote module that are connected by Cat.5e or Cat.6 cable.
- Maximum point-to-point distance: 120m (Cat.5e / Cat.6).
- Maximum distance with a repeater or LAN-switch: 200m (2 sections of 100m maximum and half the switch).

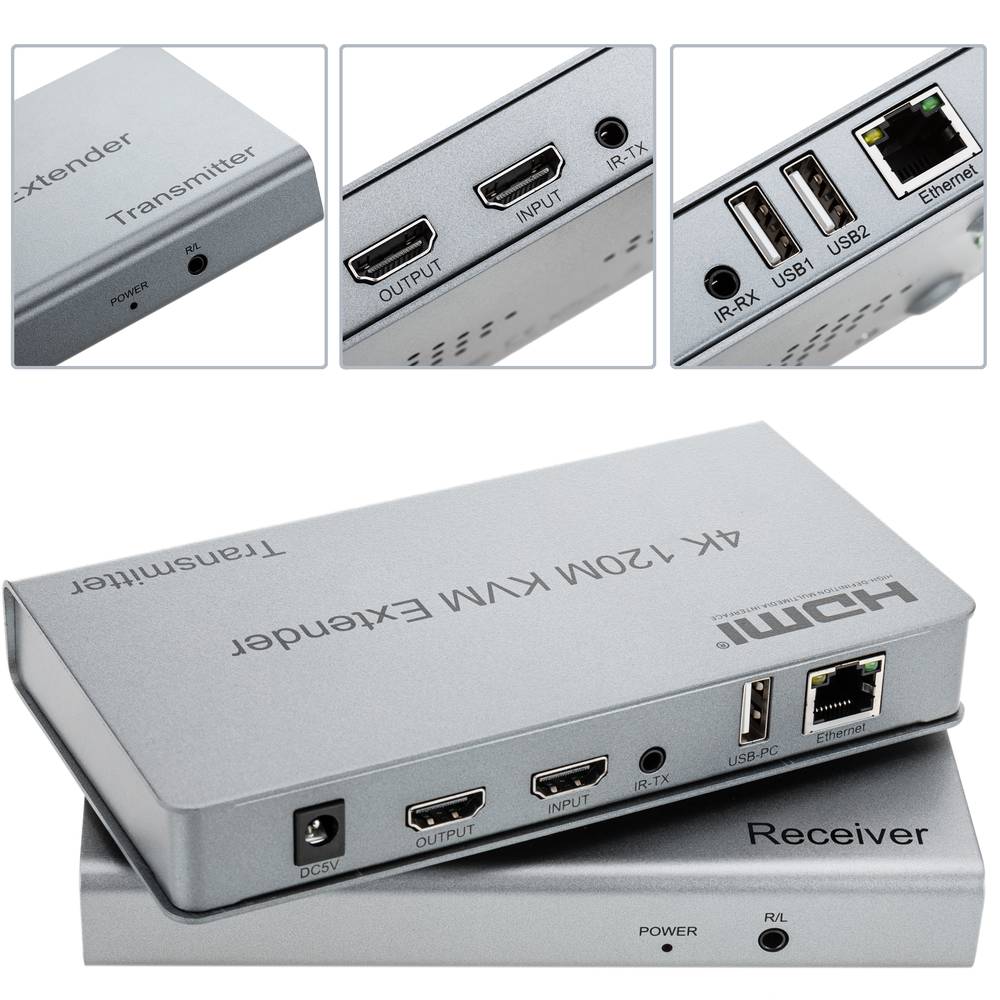

- Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse, IR emitter connector (minijack 3.5mm female), ethernet connector (RJ45-female), and 5 VDC power connector (DC-jack -female).

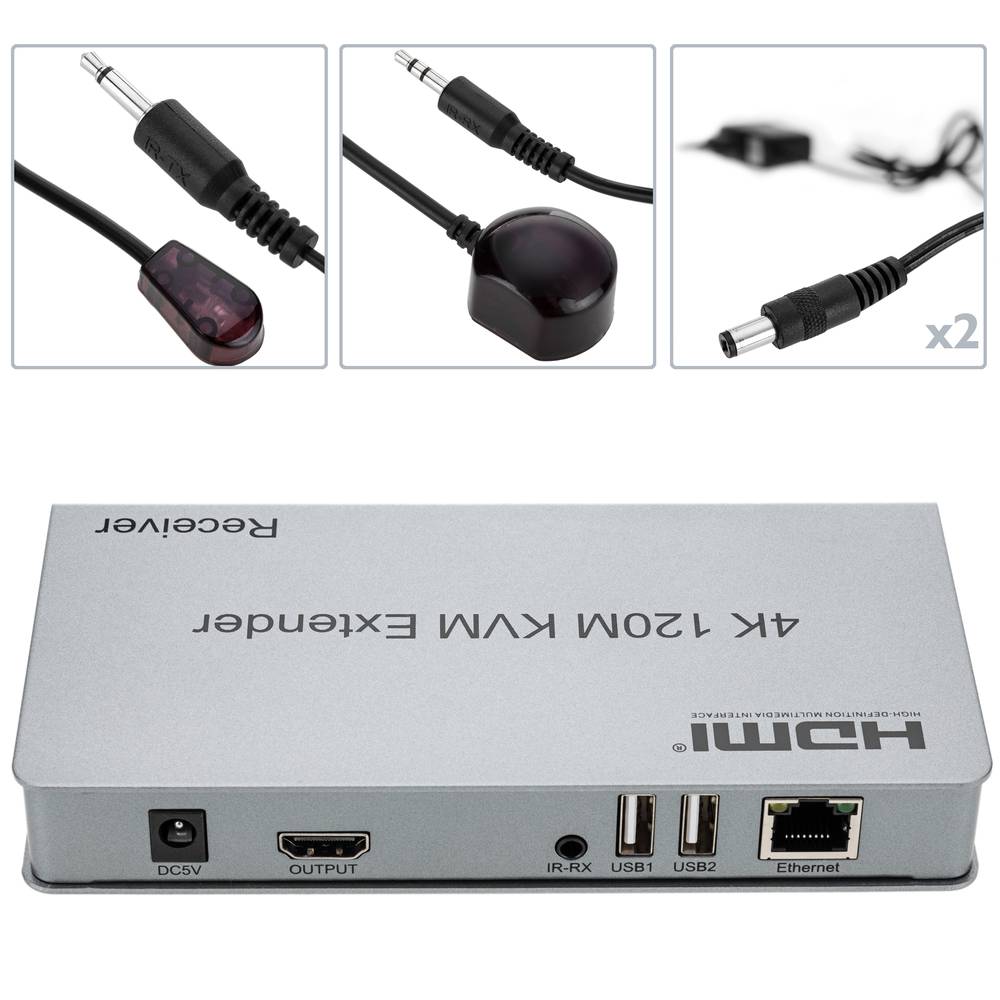

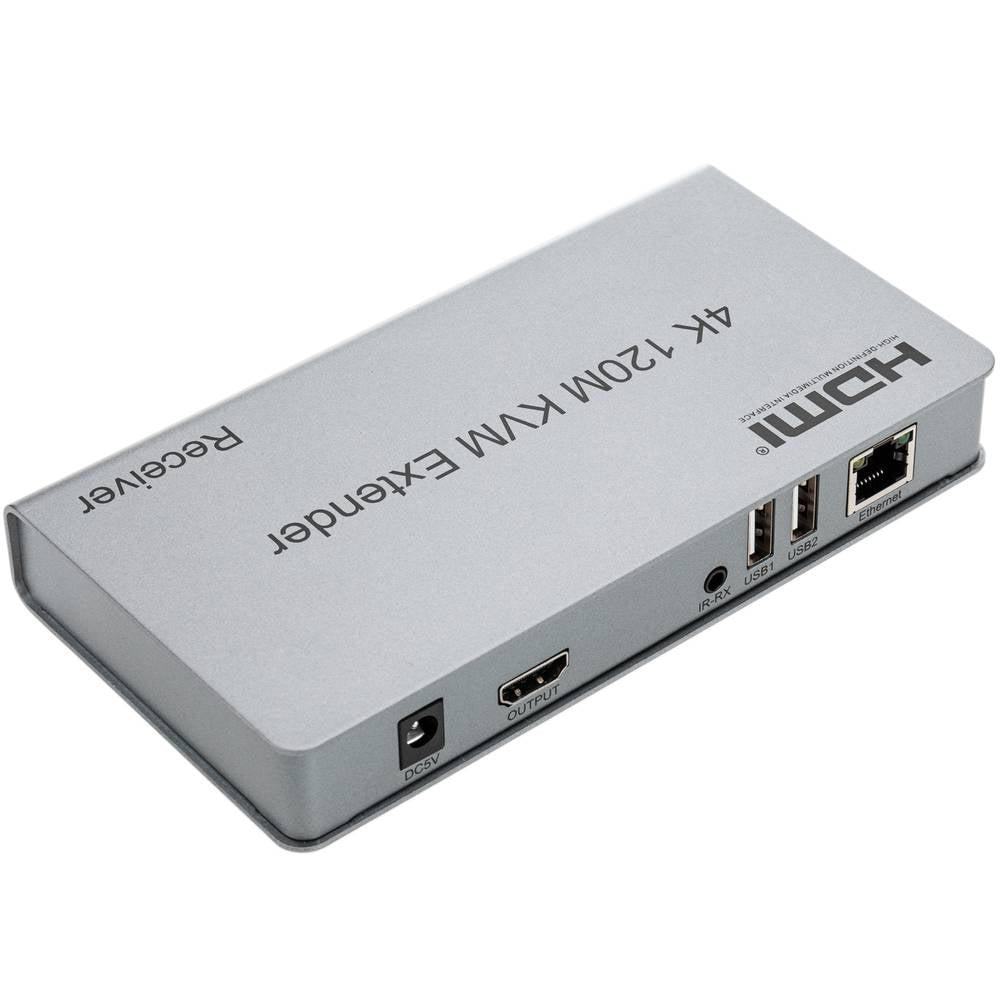

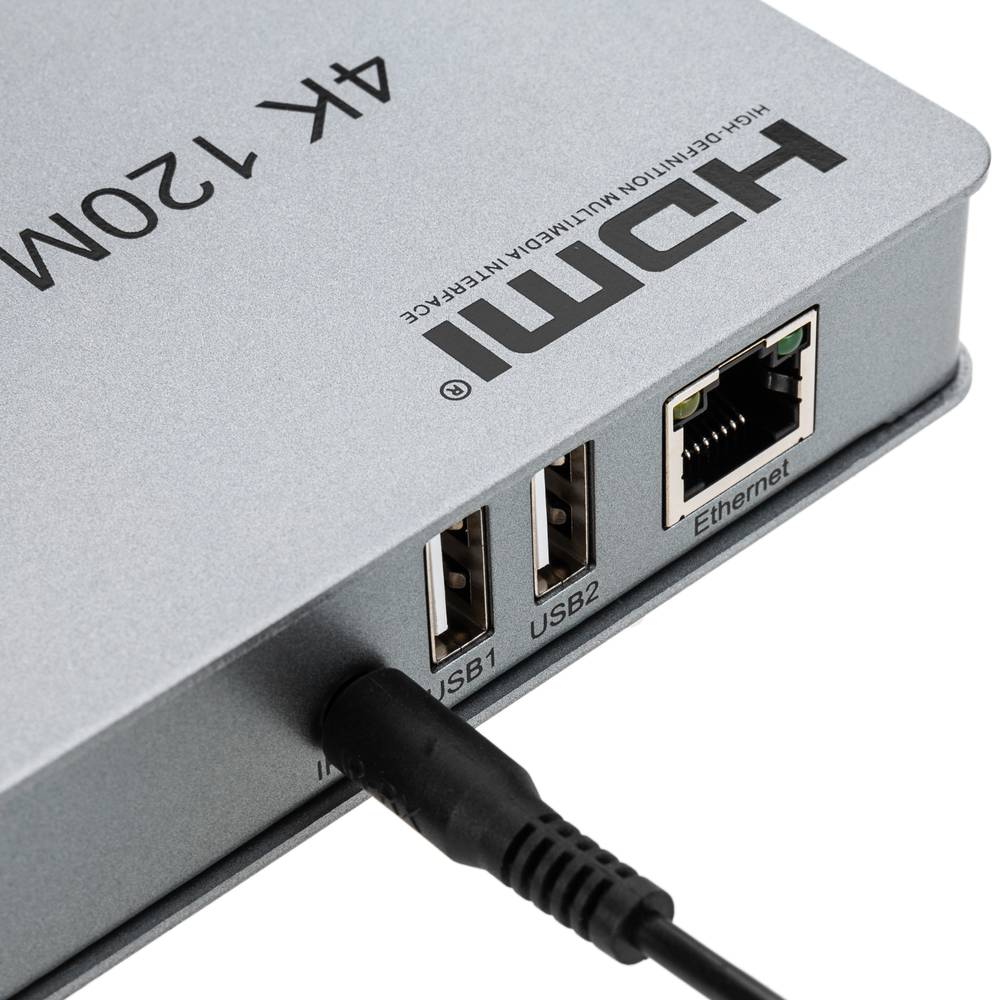

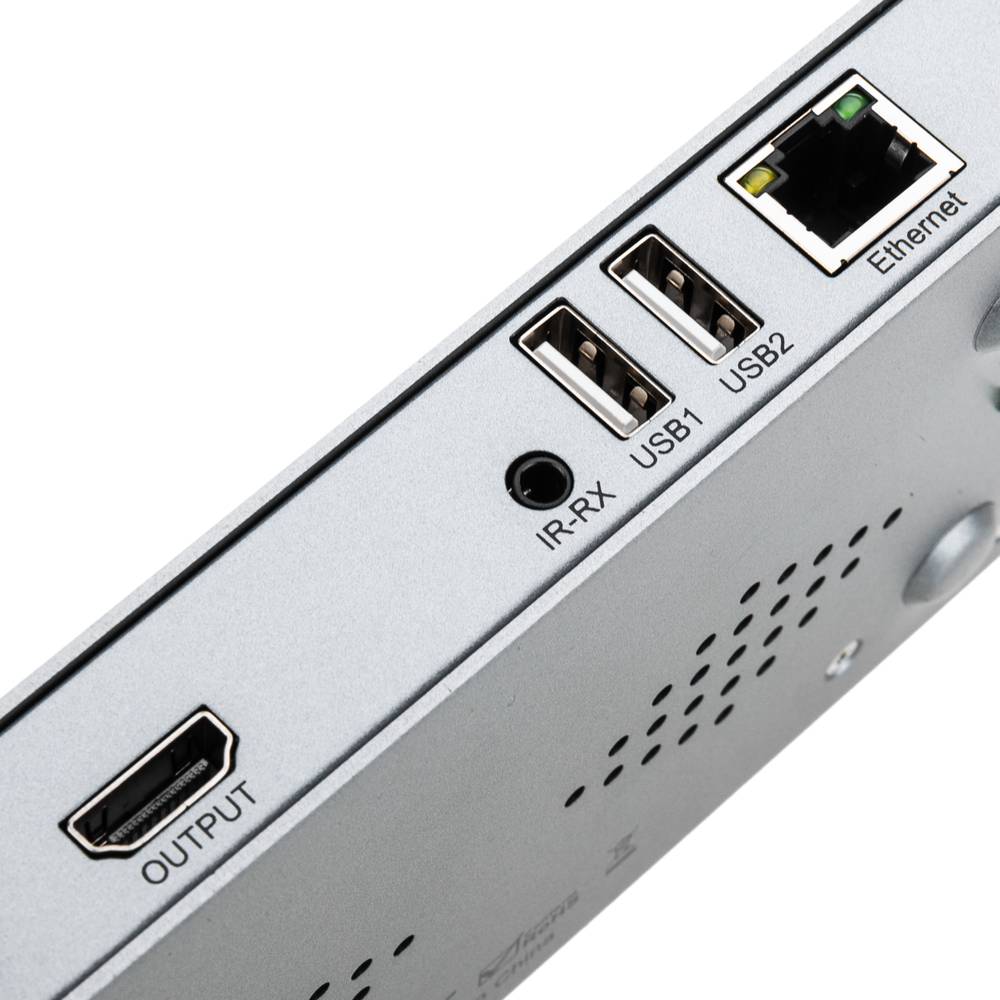

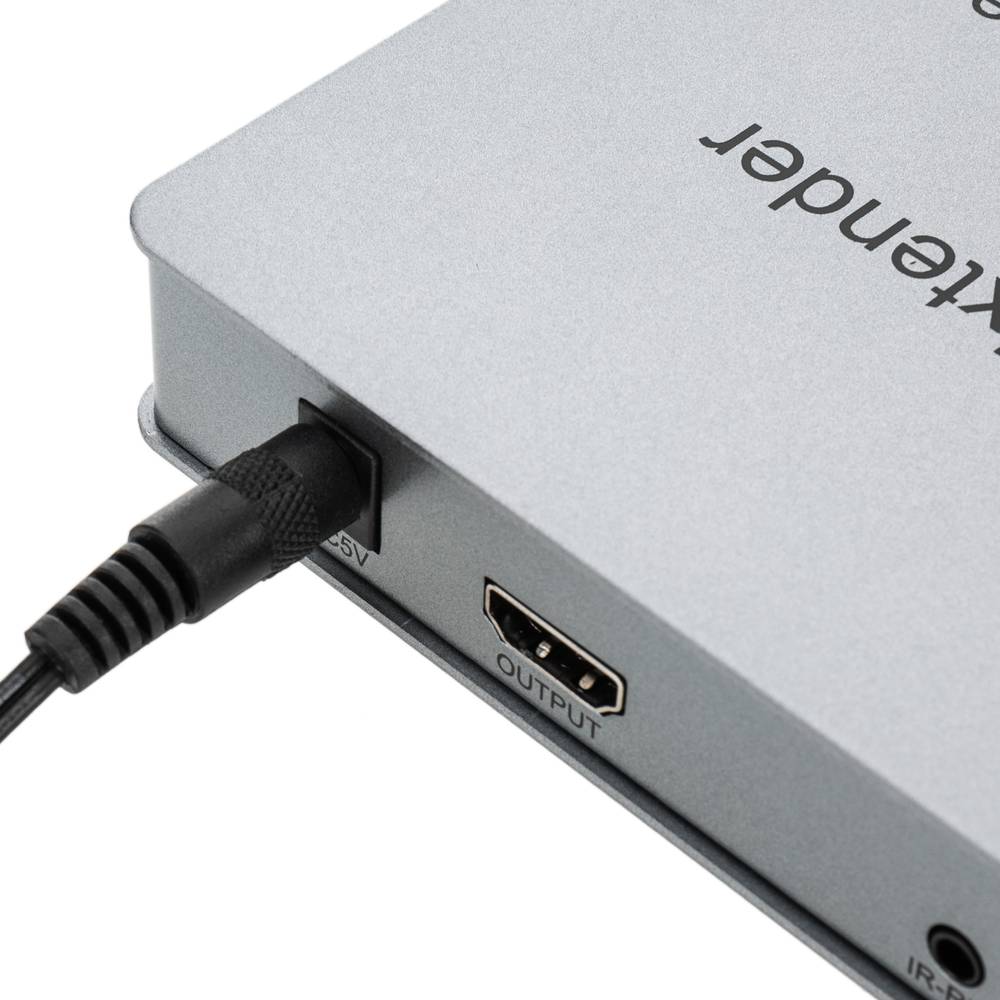

- Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), IR receiver connector (3.5mm female minijack), ethernet connector (RJ45-female), and 5 VDC power connector (DC-jack -female).
- Compatible with USB 1.1 and USB 2.0.
- Resolution 480p, 720p, 1080p and 4K.
- Compatible with HDMI 1.4 and HDCP 1.4.
- Size of each module: 162 x 86 x 24 mm.

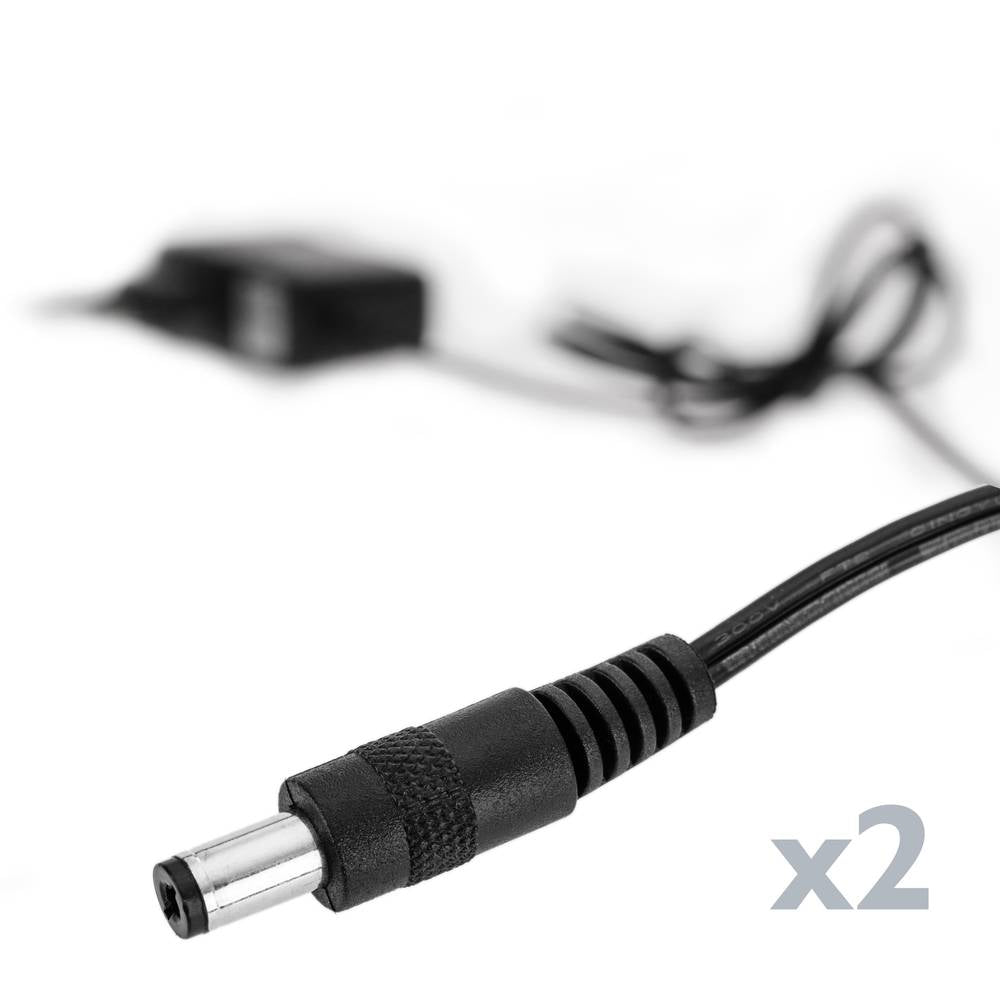

- Includes 2 5VDC power supplies and IR (infrared) emitter / receiver.
- Gross Weight: 1.42 kg
- Product size (width x depth x height): 20.0 x 20.0 x 9.0 cm
- Number of packages: 1
- Packages size: 20.0 x 20.0 x 9.0 cm
- Master-pack: 1
