Description

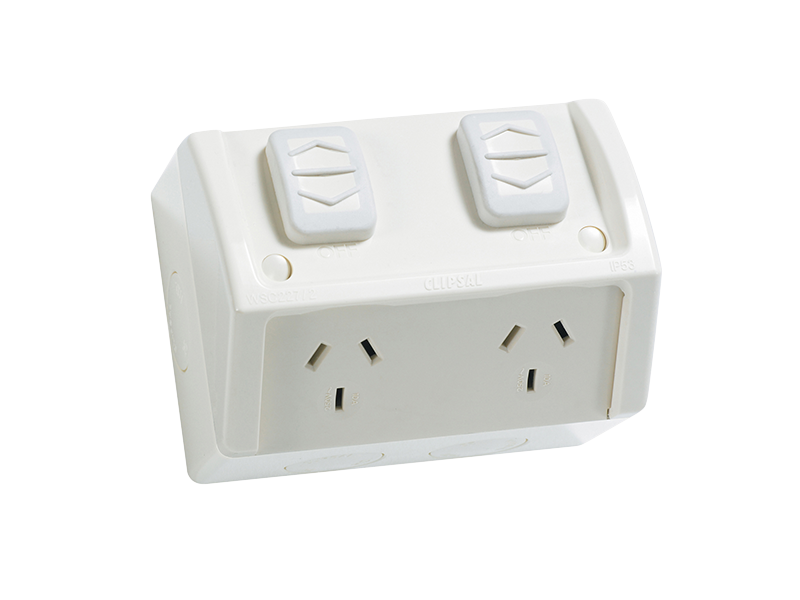

WSC227/2 Twin Switch Socket Outlet, 250V, 10A, Weather Proof
Clipsal has developed the weathershield® range-perfect for use in wineries, factories, exterior walls, on illuminated signs
If LED indicators are required, the 56LEDK1 can be added by the installer.
Key Features
- 1 x 20 mm screwed entry
- 2 x 20 mm flash out entries
- Large angle
- Easy access to screw for quick termination of cable
- Weatherprotected horse shoe switched socket outlets
| Type | Value |
|---|---|
| Brand Name | Clipsal |
| Sub Brand | Weathershield |
| Type of switch | On/off twin switch |
| Type of socket outlet | 3 pin standard |
| Number of socket outlets | 2 |
| Method of operation | Slide |
| Mounting direction | Horizontal |
| Type of fastening | Mounting with screw |
| With lighting | No |
| Mounting method | |
| Material | Plastic |
| Material quality | |
| Surface treatment | |
| Type of surface | |
| Colour | |
| RAL-number (akin) | |
| Suitable for degree of protection (IP) | IP53 |
| Nominal voltage | 250 VAC |
| Nominal current socket outlet | 10 A |
| Switching current | mA |
| Size | 115 Length x 85 Width mm |
| Mounting Centres | 84 mm |
| Standard | AS/NZS 3112, S/1 Certified |
